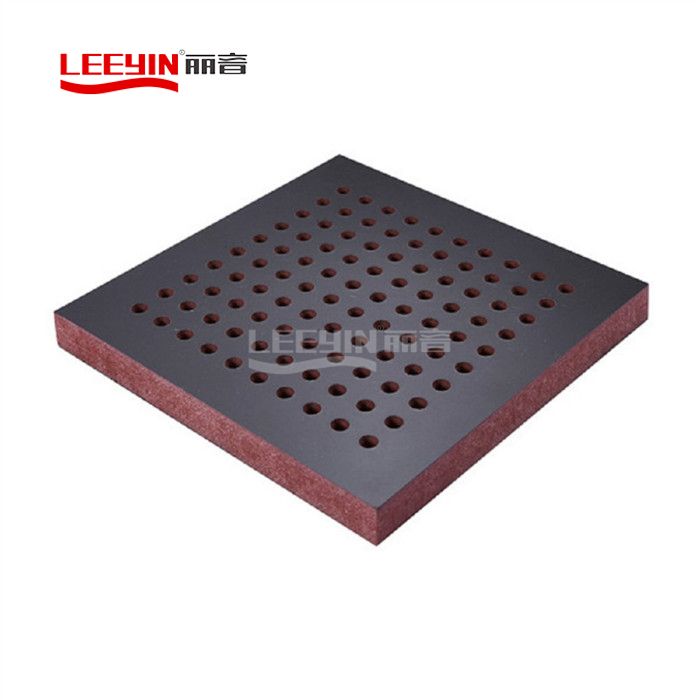

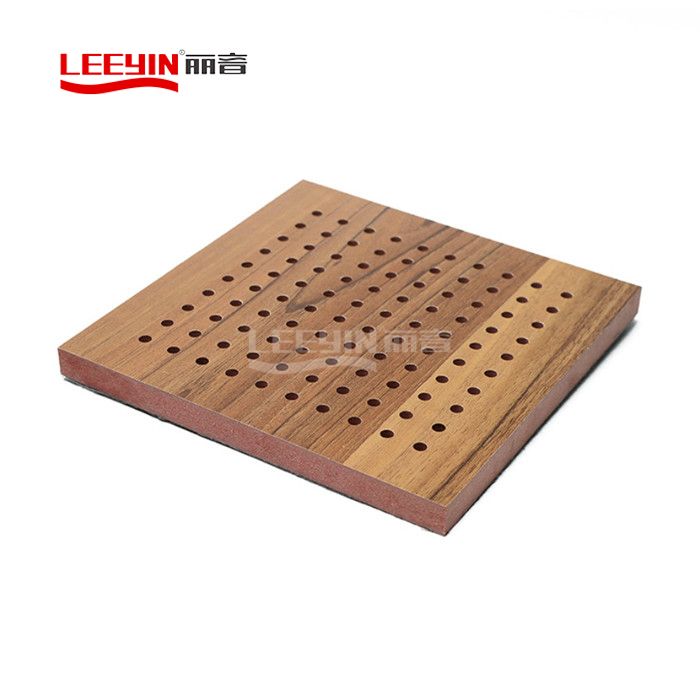

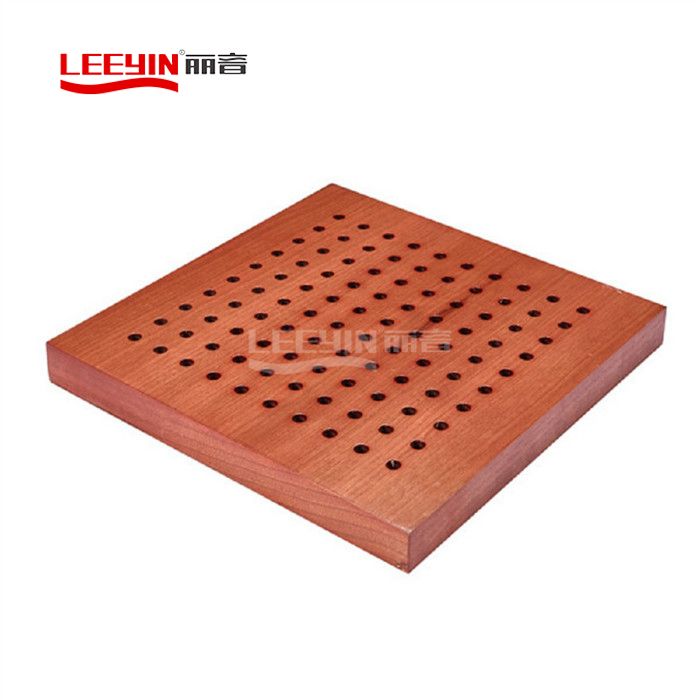

16-6-6 Wooden Veneer Perforated Acoustic Panel

Standard Thickness:12/15/18mm

Distance of two Holes:8/8,16/16,32/32mm,etc.

Diameter of Holes:1,2,3,4,5,6,8,10,12mm,etc.


Product parameters

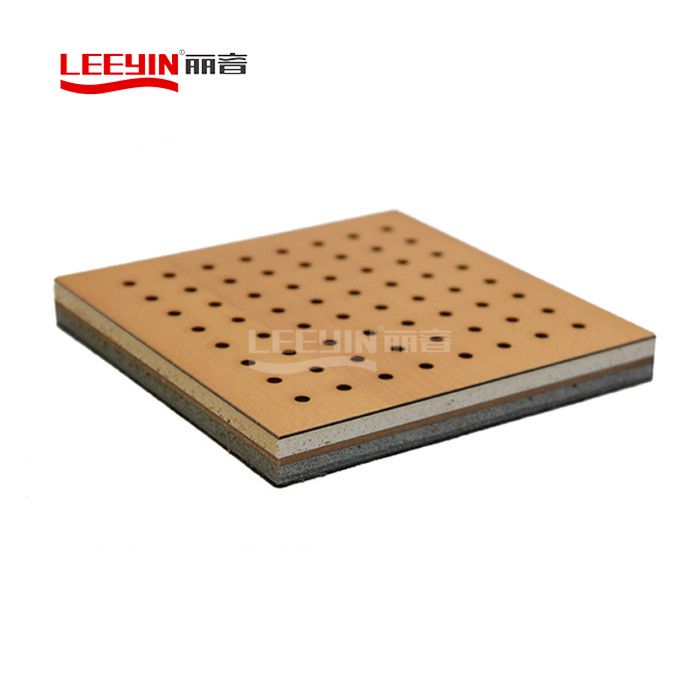

Structure:Basic Material,Finish&Back Finish

Basic Material:E1 MDF,FR MDF,MGO Combination Board etc.

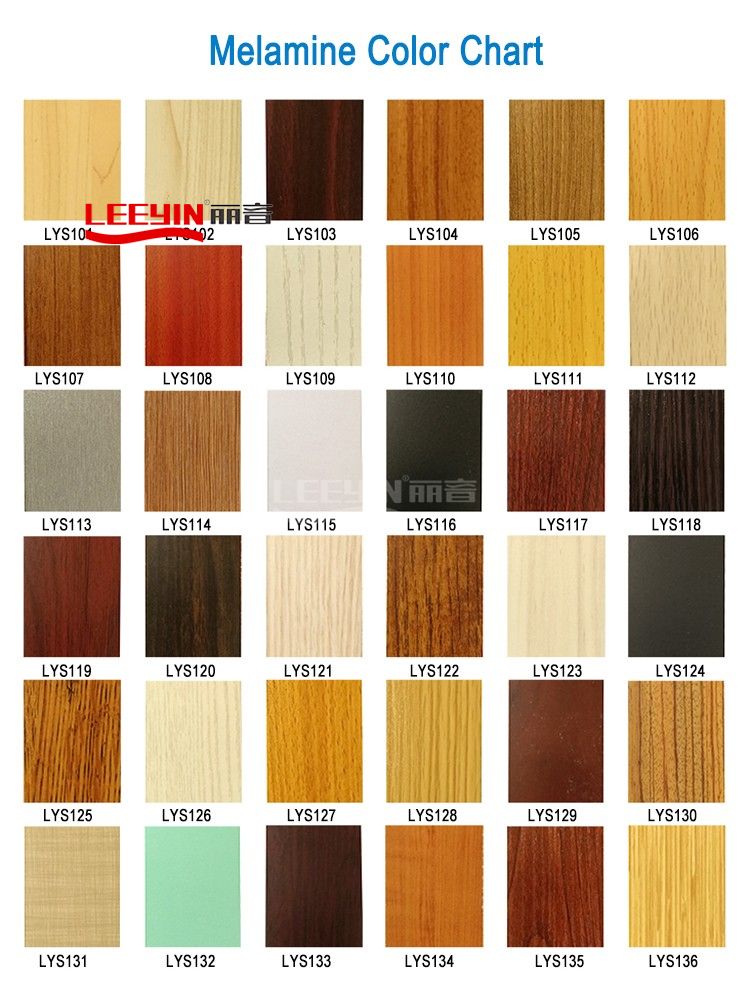

Front Finish:Melamine,Natural Wood Veneer,Paint,etc.

Back Finish:Black Fleece

Standard  Dimension:600*600mm,1200*600mm or customized

Standard Thickness:12/15/18mm

Distance of two Holes:8/8,16/16,32/32mm,etc.

Diameter of Holes:1,2,3,4,5,6,8,10,12mm,etc.

Standard Pattern:8/8/1,16/16/3,16/16/6,32/32/6,32/32/8.etc.

Installation:1.Lightweight steel keel system,2.Wooden steel keel systerm

Flame Retardant:BS476 Part 7 Class1,ASTM E84-18 Class A

Formaldehyde Emission:EN13986:2004 Class E1

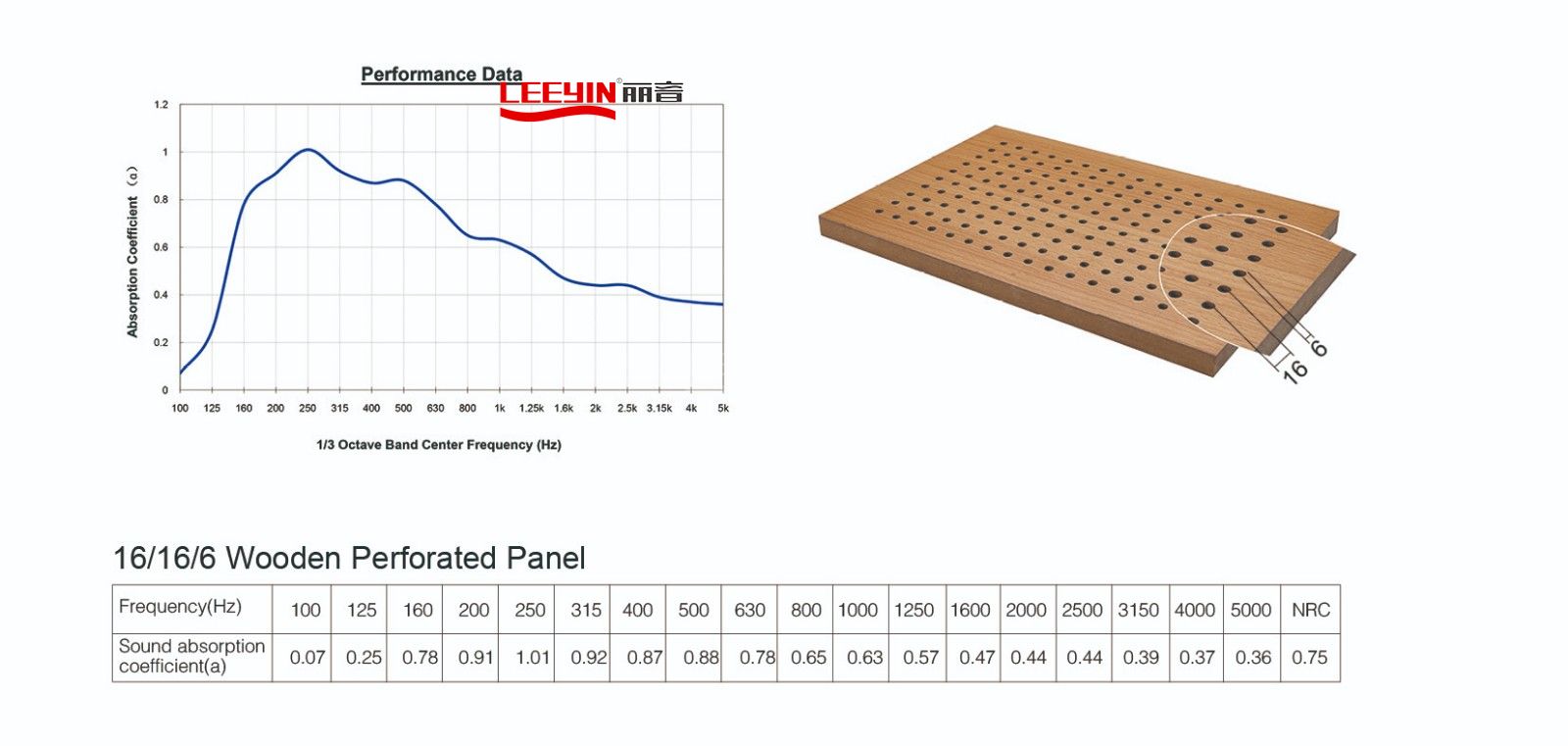

Noise Reduction Coefficient:0.75

Perforation Rate:11%

16-6-6 Wooden Veneer Perforated Acoustic Panel


Product Features

Leeyin® perforated wood acoustic panel gives an excellent acoustic control in high-end decoration spaces. Our panels for ceilings and walls are based in a slotted system with different drill widths and diameters. The average NRC can reach 0.75.

16-6-6 Wooden Veneer Perforated Acoustic Panel

Scope of application

Perforated wood acoustic panels are used for the opera house, theaters,recording studio,broadcasting studio,television station,multi-function hall, conference room, concert hall, auditorium,gymnasium, piano room,school, recreation, hotel, KTV,plant,senior villa or home life and the places which have strict requirements for acoustics.
