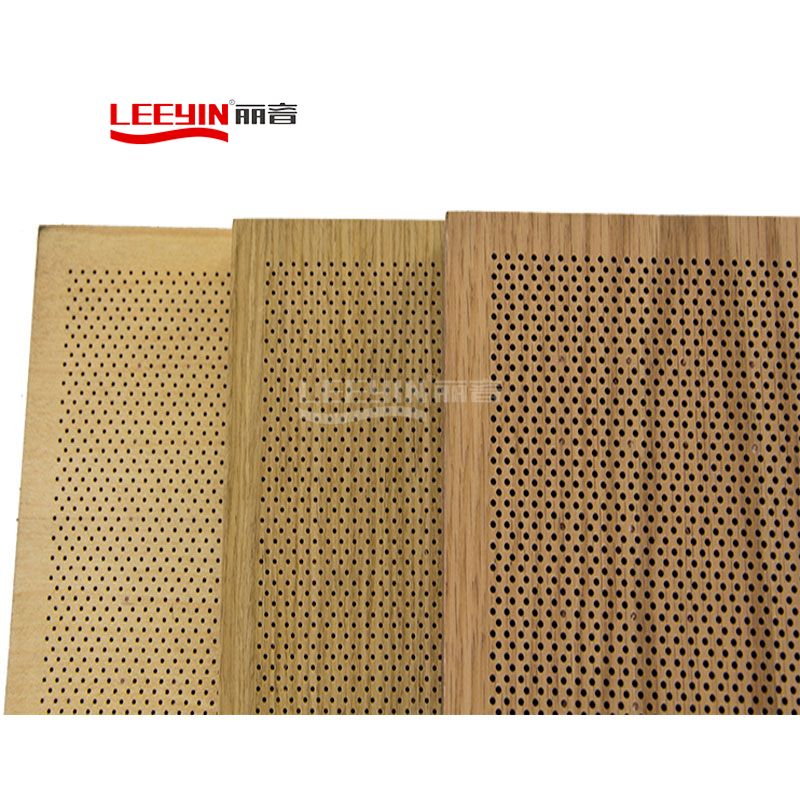

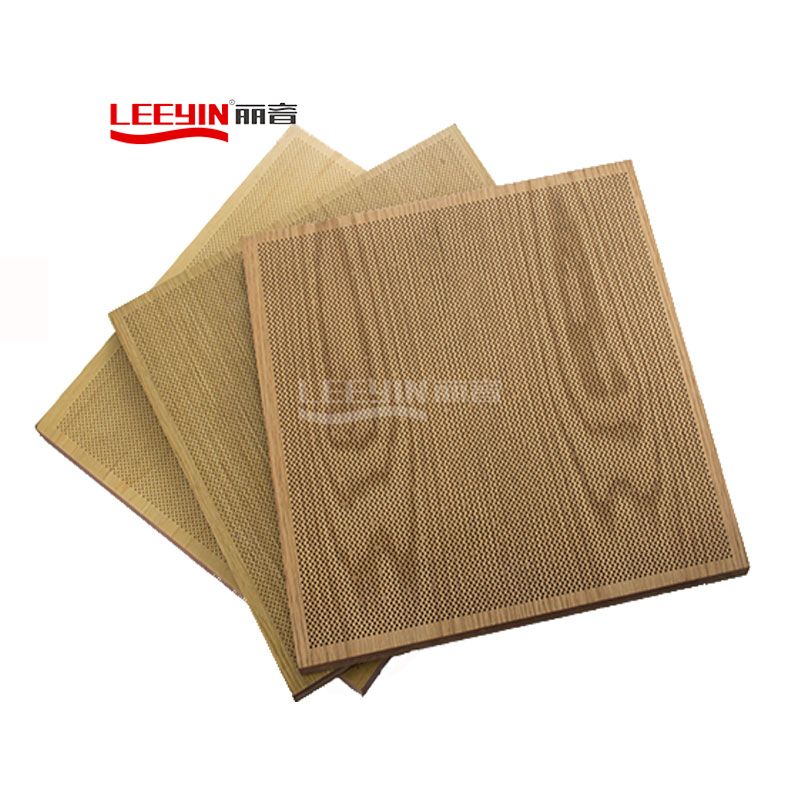

FR MDF acoustic project wall perforated acoustic panel

Distance of two Holes: 8/8,16/16,32/32mm,etc.

Diameter of Holes: 1,2,3,4,5,6,8,10,12mm,etc.

Fireproof/Moisture-proof and mildew-proof/Environment-friendly

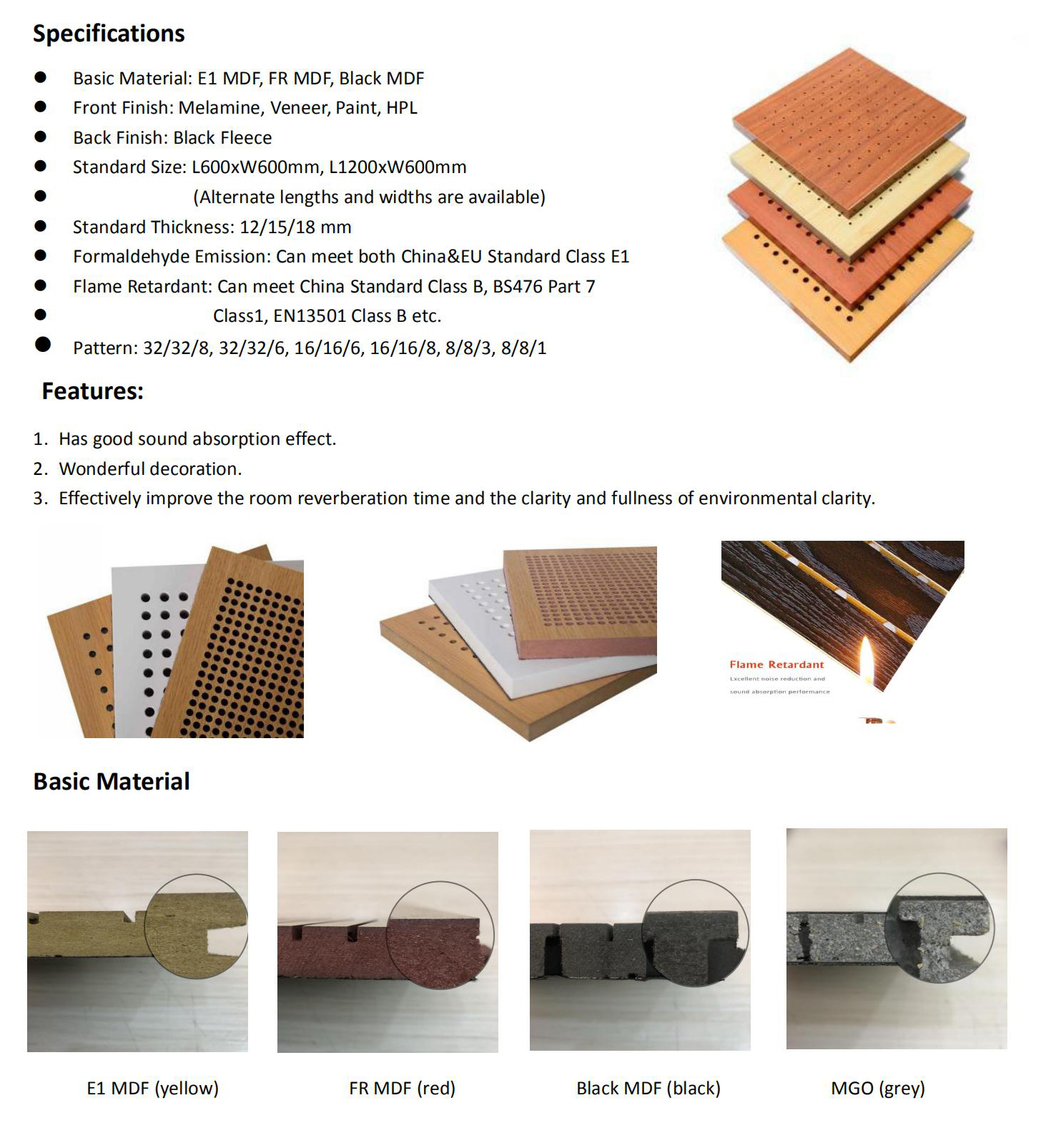

Product parameters

1.Product NamePerforated Acoustic Board
2.Basic MaterialMGO
3.SurfaceMelamine ,Natural Wood Veneer,Paint,etc.

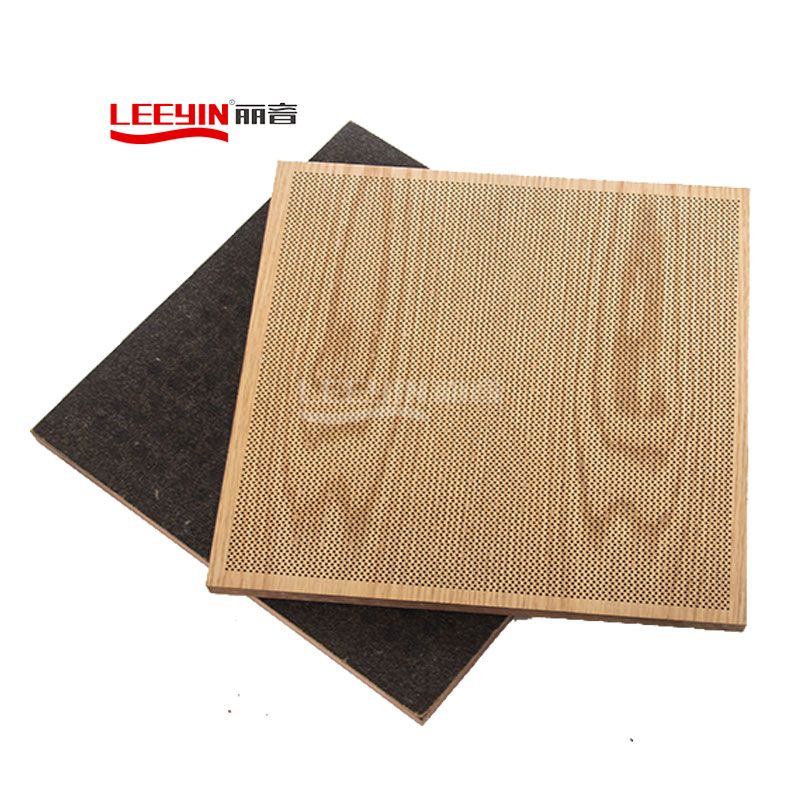

4.Back FinishBlack Acoustic Felt
5.Standard  Size

L600xW600mm,L1200xW600mm

(alternate lengths and widths are available)

6.Standard Thickness12/15/18mm
7.Distances of two holes8/8mm,16/16mm,32/32mm
8.Diameter of holes1,2,3,4,5,6,8,10,12mm,etc
10.Fire rateBS 476,Part 7,Class 1
11.Eco EmissionE1
12.ApplicationAuditorium,stadium,gymnsasium,Conference room

Product Features


perforated wood acoustic panel

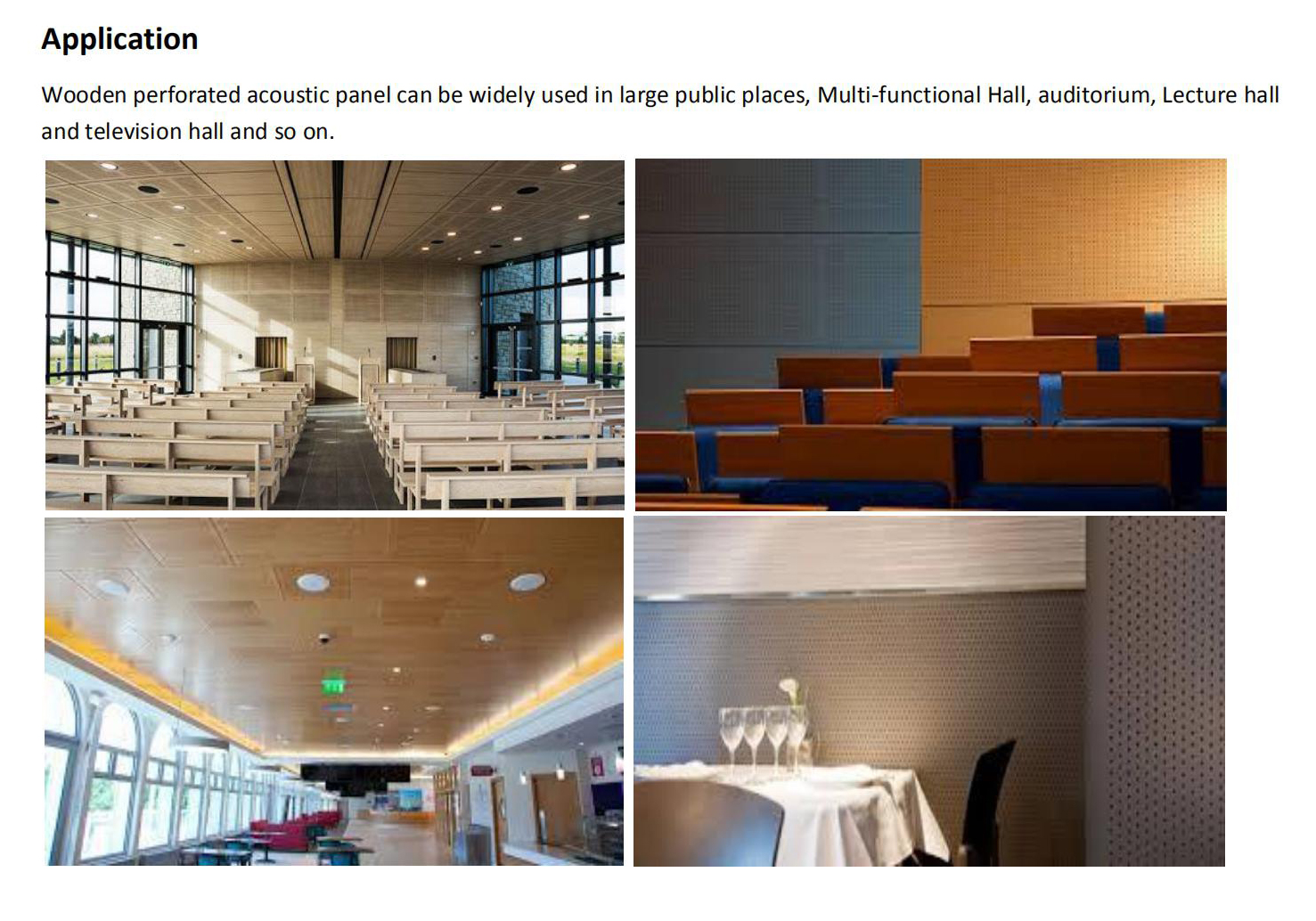

Scope of application

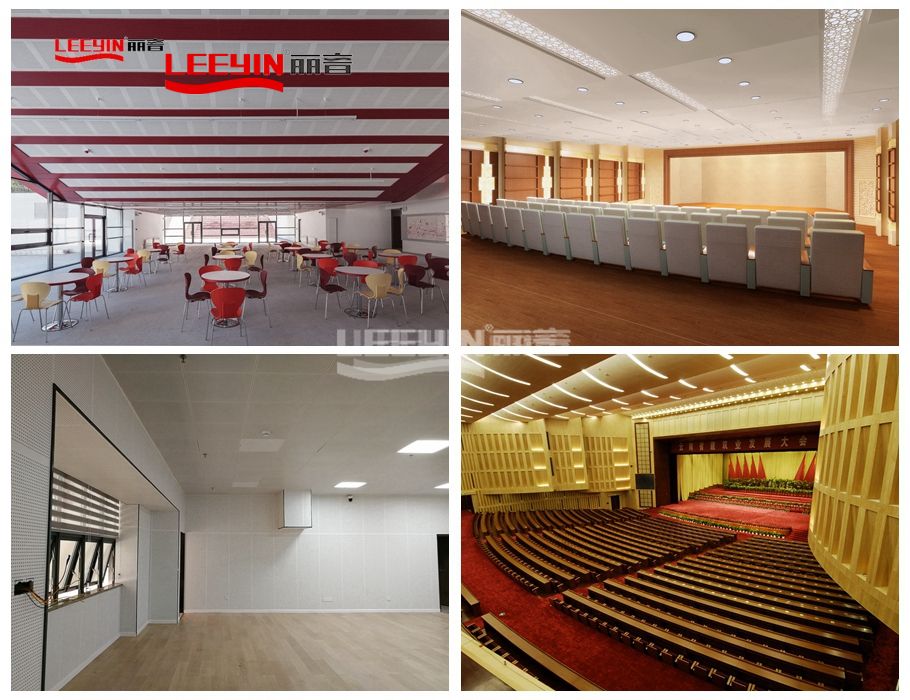

Leeyin wooden perforated acoustical panels can be applied to Multi-Functional Performance Hall, Gymnasium, conference center, reception hall, office, hospital, restaurant, music rooms, auditoriums, recording studios, broadcasting studios and shopping center. Any space where good speech privacy or speech intelligibility is needed can be used.
