Home  /  Products  /  Acoustic Panels  /  Sound Absorber
  • Multi Function Sound Absorber
  • Multi Function Sound Absorber
  • Multi Function Sound Absorber

Multi Function Sound Absorber

Model: LY30/ LY 60/ LY 120

Finish: Flame retardant acoustic glass fiber cloth


Product parameters

Model: LY30/ LY 60/ LY 120

Finish: Flame retardant acoustic glass fiber cloth

Weight: 3.8kg/㎡, 6.8kg/㎡, 12kg/㎡

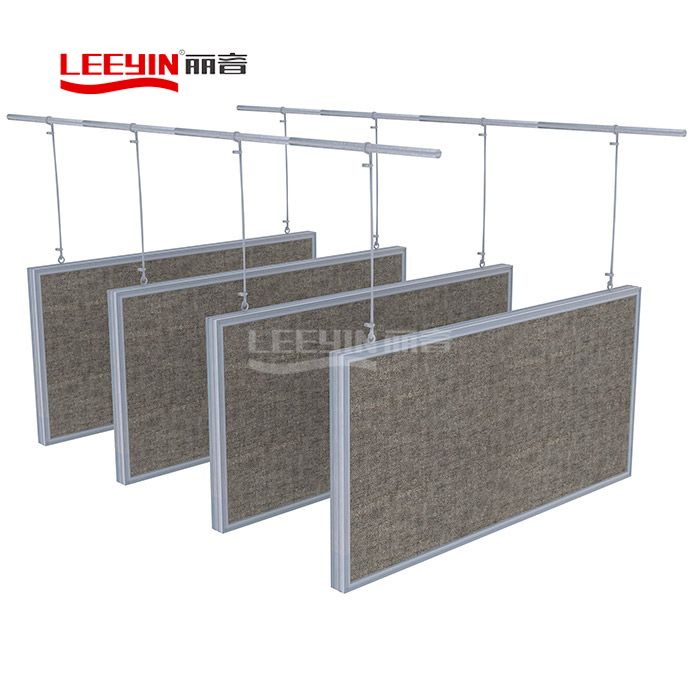

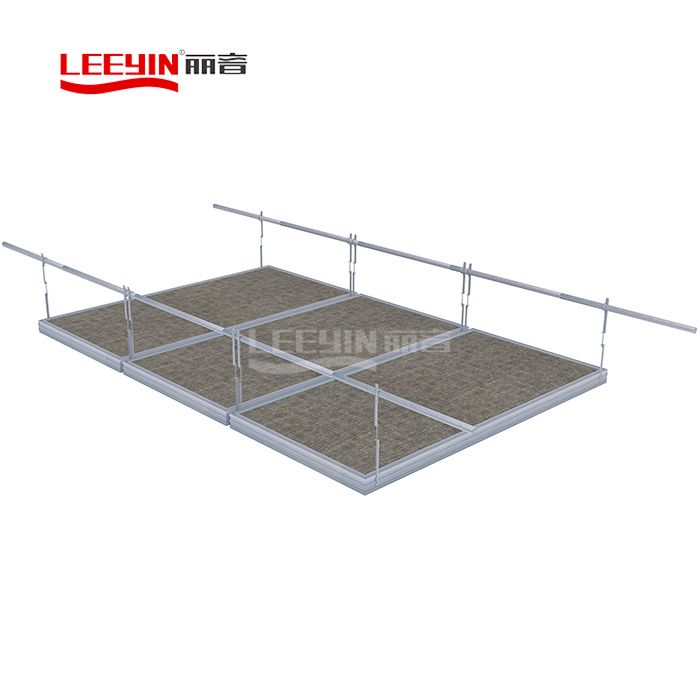

Installation method: Horizontal hanging. vertical hanging

Environmental protection: Release of formaldehyde≤0.48mg/L, meet the formaldehyde emission of interior decoration materials and wood-based panel products(GB18580)National E1 class requirements; Limited value≤1.5mL/g, glass fiber particles released in 24 hours≤2mg/m3, environmental protection belongs to the national E1 class standard requirements, limited value 0.15mg/m3 standard.

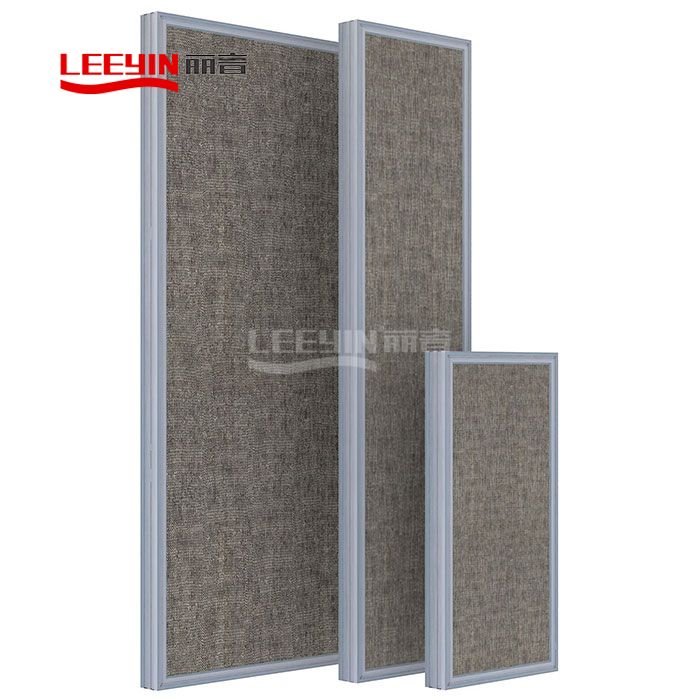

Conventional specifications: 600x1200mm, 600x2400mm, 1200x1200mm, 1200x2400mm

Fireproof performance: Class A

Structure: One piece aluminum alloy frame, filled with custom broadband sound-absorbing foam, foam surface is composited with environmental sound absorption felt, the surface wrapped in a fire-retardant non-combustible sound-absorbing cloth.


Product Features

Compared with the sound-absorbing material on the indoor surface, the multi-function sound absorber has a high sound absorption efficiency under the same projected area. Multi-function sound absorber is a kind of sound absorption material with high performance absorption hanging in the ceiling, which is featured by less material, light weight, investment saving, high sound absorption efficiency, flexible layout and convenient construction. When the installation area reaches a certain percentage of the total area of the ceiling (generally more than 30%), it can effectively reduce the indoor reverberation time T60, improve language clarity D50 and music clarity C80, effectively improve the environment of the equivalent step-up level (Leq).



Multi-function sound absorber

Multi-function sound absorber

Multi-function sound absorber

Scope of application

Gymnasium, multi-functional hall and other large space venues for control reverberation time.
