28-4 Soundproofing Wooden Grooved Acoustic Panel

Standard Size:2440*197mm,2440*132mm or customized

Standard Thickness:12/15/18mm

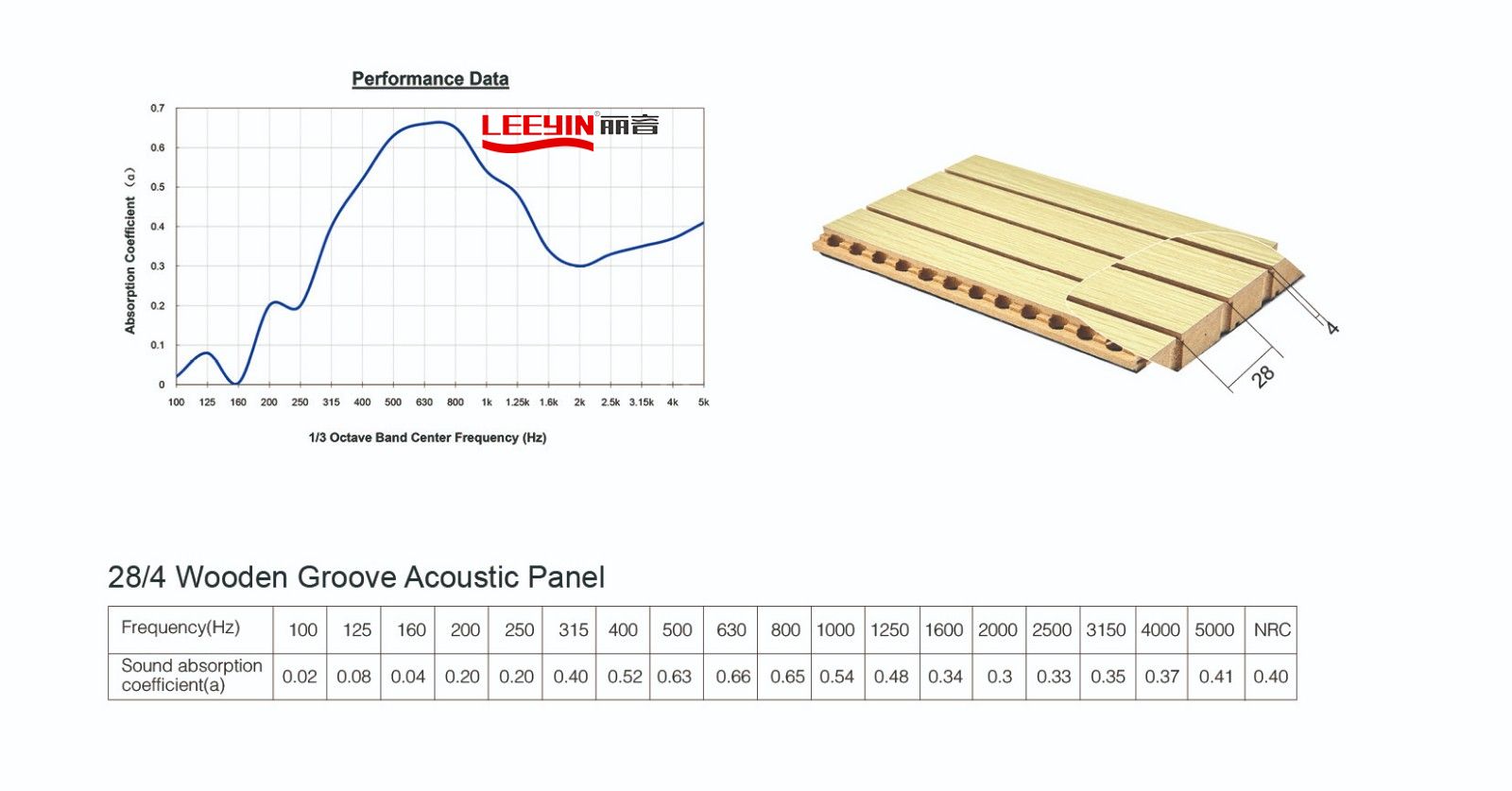

Noise Reduction Coefficient:0.40

Perforated Rate:7.60%


Product parameters

Core Material:E2/E1/FR MDF, MGO, plywood, etc.

Front Finish:Melamine, Veneer, HPL, Painting

Back Finish:Sound absorption fleece

Standard Size:2440*197mm,2440*132mm or customized

Standard Thickness:12/15/18mm

Noise Reduction Coefficient:0.40

Perforated Rate:7.60%

Flame Retardant:BS476 Part 7 Class1,ASTM E84-18 Class A

Formaldehyde Emission:EN13986:2004 Class E1

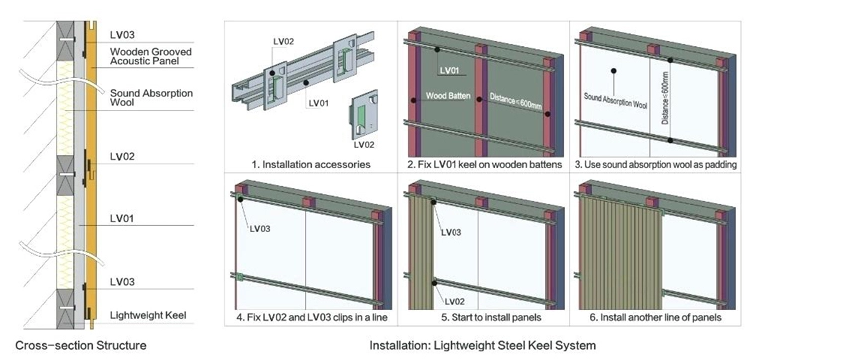

This series of products sound-absorbing effect is good, and improve reverberation time significantly. Acoustic characteristics meet the national standard of similar materials, effectively improve the environmental sound fullness, clarity and three-dimensional sense, standardized module design, using slot, keel structure, easy and fast installation.


28-4 Soundproofing Wooden Grooved Acoustic Panel





Product Features

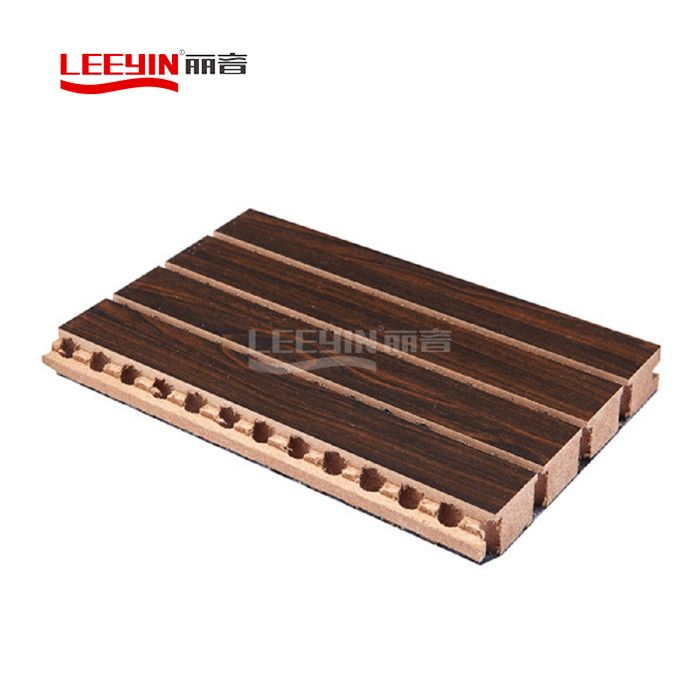

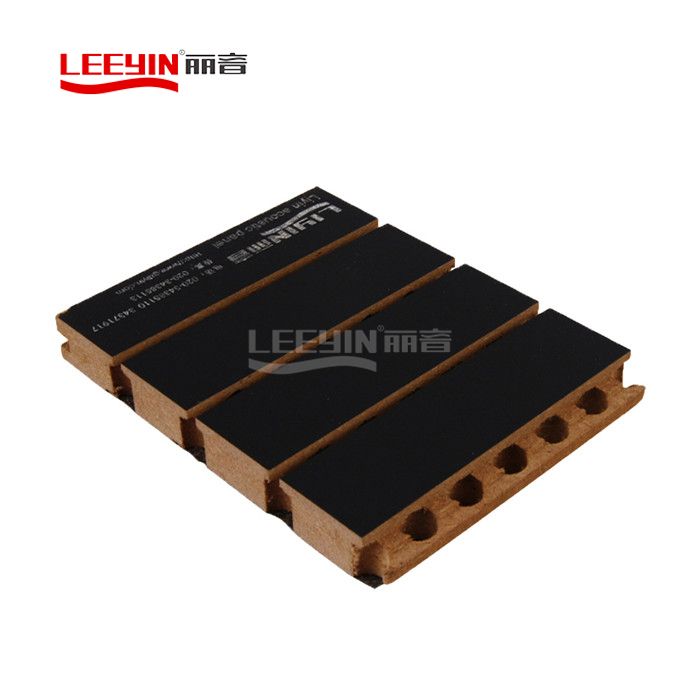

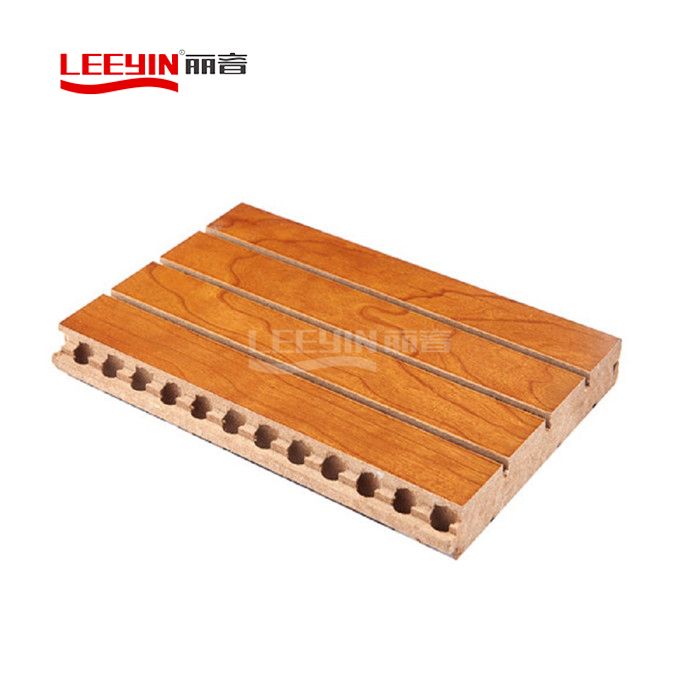

Leeyin wooden grooved acoustic panels consist of three layers: the substrate, the front surface and the back surface. We use MDF as the substrate, which is laminated with melamine or natural wood veneer on the front surface, channeled/slotted with a series of grooves on the front surface, perforated with a series of round holes on the back surface and then a layer of black acoustic fleece is pasted on the back surface of the substrate.


The pattern of our wooden grooved acoustic panels is determined by the width of the slats and grooves. For example, pattern 13-3 means the width of the slats is 13mm and that of the grooves is 3mm.

28-4 Soundproofing Wooden Grooved Acoustic Panel

Scope of application

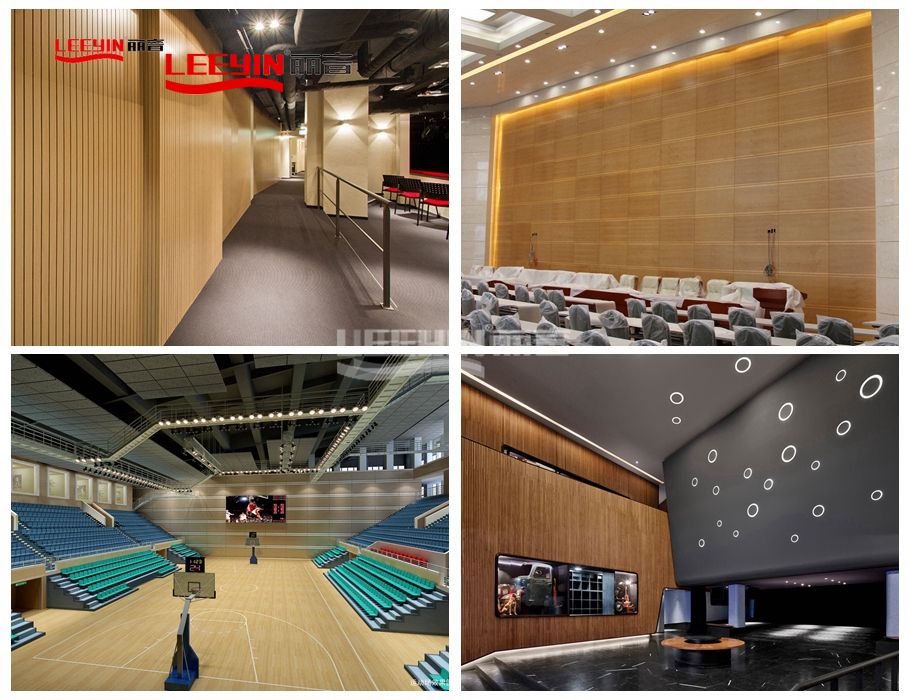

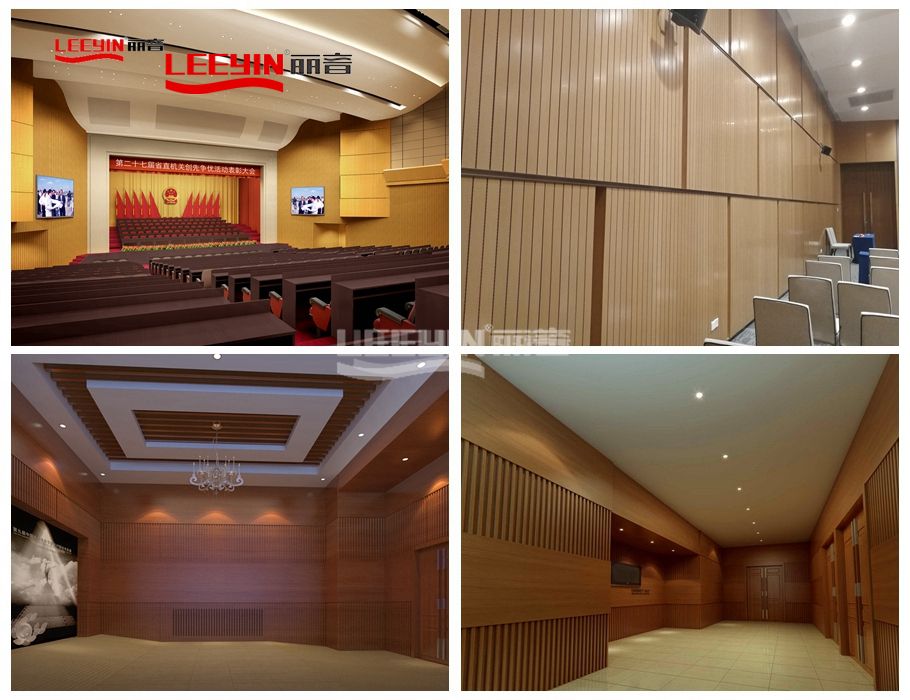

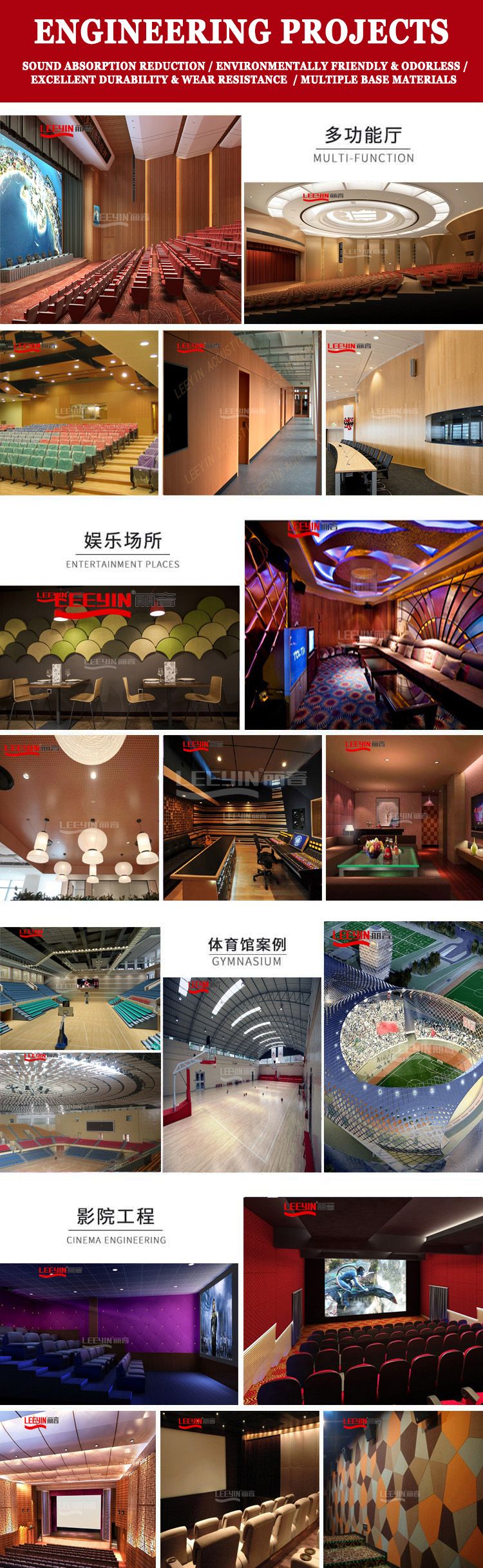

Home theater, concert hall, HIFI audition room, recording room, and other high-end site interior decoration, as well as improve the quality of sound quality, improve voice clarity, the material is featured by lightweight, not deform, high strength, beautiful shape, elegant color, good decorative effect, strong sense of three-dimensional and easy installation.

28-4 Soundproofing Wooden Grooved Acoustic Panel

28-4 Soundproofing Wooden Grooved Acoustic Panel
