Home  /  Products  /  Acoustic Panels  /  Wooden Acoustic Panels  /  Grooved Acoustic Panels
  • 13-3 Black MDF wooden goove acoustic panel
  • 13-3 Black MDF wooden goove acoustic panel
  • 13-3 Black MDF wooden goove acoustic panel
  • 13-3 Black MDF wooden goove acoustic panel
  • 13-3 Black MDF wooden goove acoustic panel

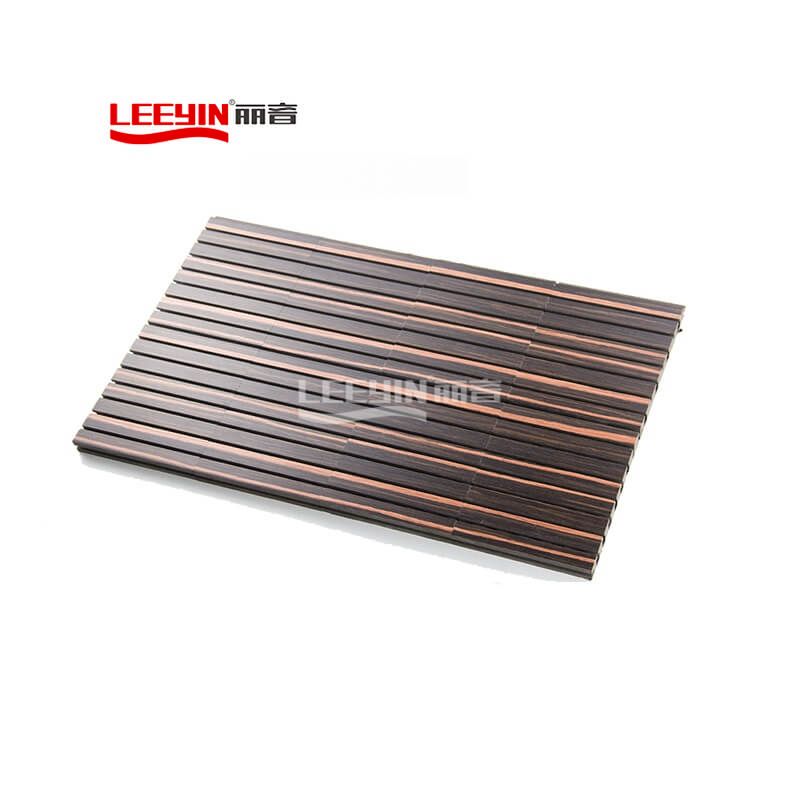

13-3 Black MDF wooden goove acoustic panel

Model:5-3/6-2/12-4/13-3/28-4/Support Customized

Substrate: High density flame retardant

Fireproof/Moisture-proof and mildew-proof/Environment-friendly


Product parameters

StructureBase Material, Finish & Back Finish
Basic MaterialBlack MDF
Front FinishMelamine, Natural Wood Veneer, Paint, etc.
Back FinishBlack Acoustic Felt
Standard Size2440*133mm, 2440*197mm
Standard Thickness12/15/18mm
Pattern13-3, 14-2, 28-4, 59-5,6-2,5-3,4-3;

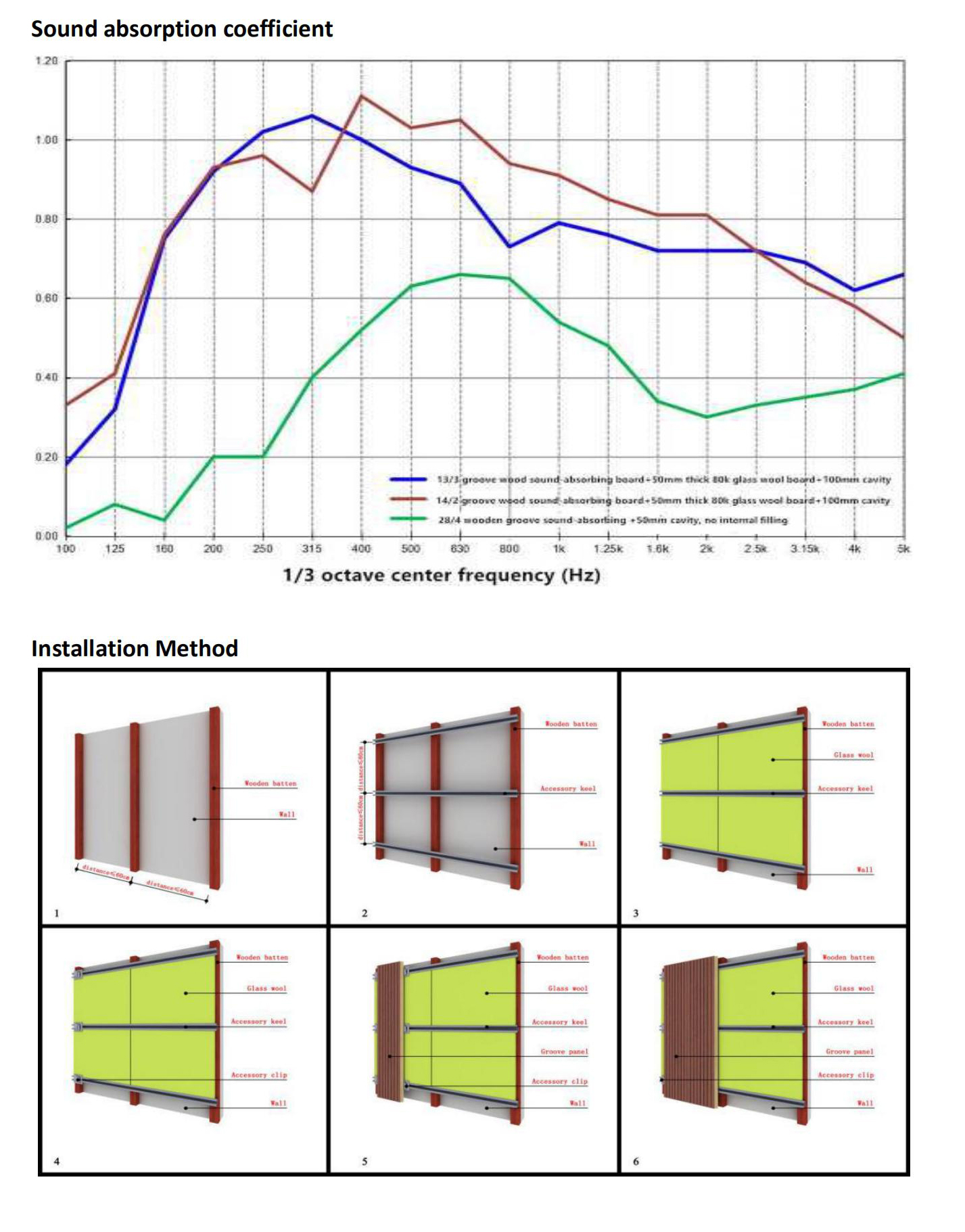

Acoustic PrincipleResonance Absorption
Eco-FriendlyE1
Fire ResistanceFrance F1
Density720kg/M3
Formaldehyde EmissionCan meet both China&EU Standard Class E1
Flame RetardantCan meet China Standard Class B,BS476 Part 7
Class 1,etc.
InstallationLightweight steel keel system; Wooden battern systern


Product Features

13-3 Black MDF wooden goove acoustic panel

1.Scientific industry: Made according to acoustic theory, excellent at reducing noises, especially effective for absorbing high and middle frequency noises.

2.Artistic products: Natural wood, which may be carved according to your taste.

3.Environment-friendly: All the materials conform to the country's environmental protection standards, little wood alcohol is contained. Its natural wood is fragrant.

4.Fireproof: Fireproof degree B1- the highest for wood. It has already been tested by authoritative organization.

5.Moisture-proof and mildew-proof: It is made of high density moisture-proof and mildew-proof material.

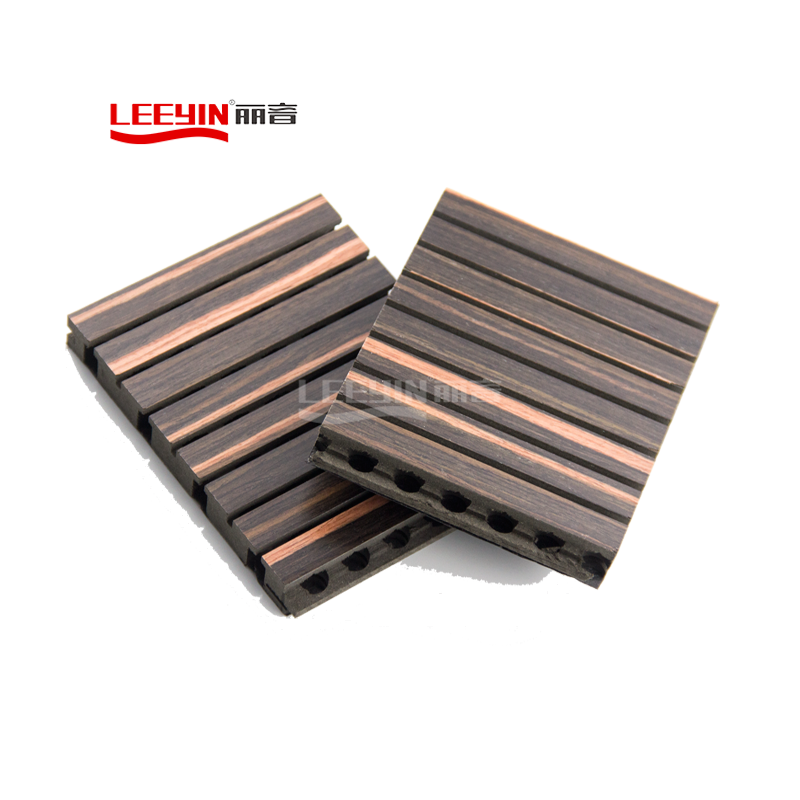

6.Theory: Grooved on front and perforated on back of the panel with concealed system (for installation). It is usually used on the wall to absorb sound and reduce noise.

7.Easy to install: Dragon bone construction is applied.

8.Industrial production: No more an extensive production, automatically controlled by computers, standardized and large scale production, improved is production capability and ensured is products quality.

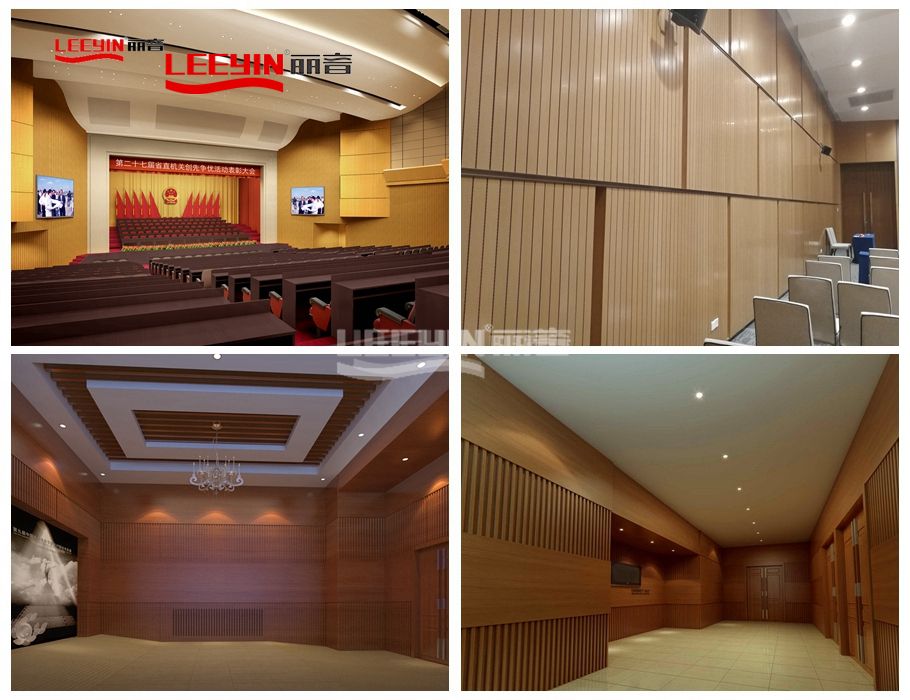

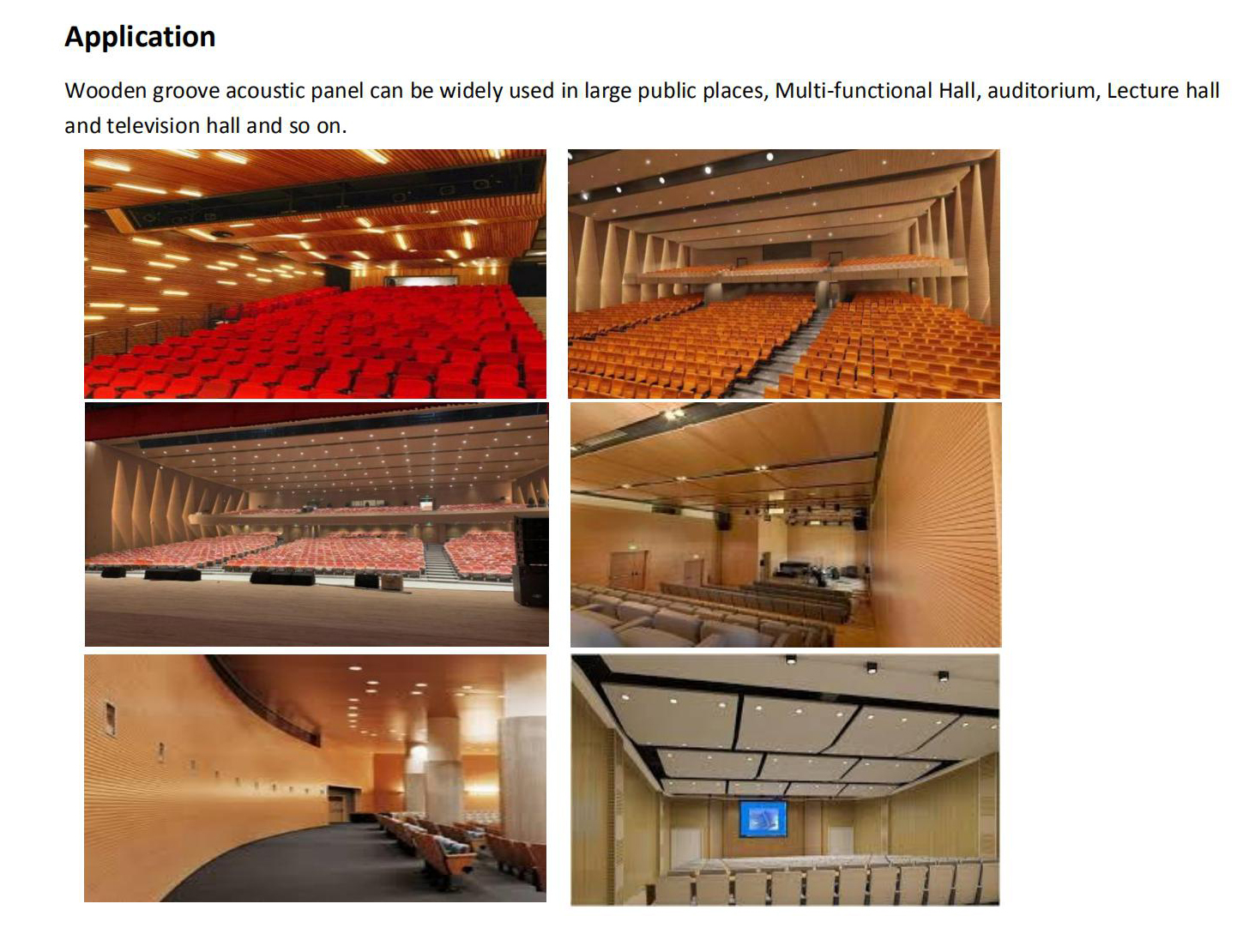

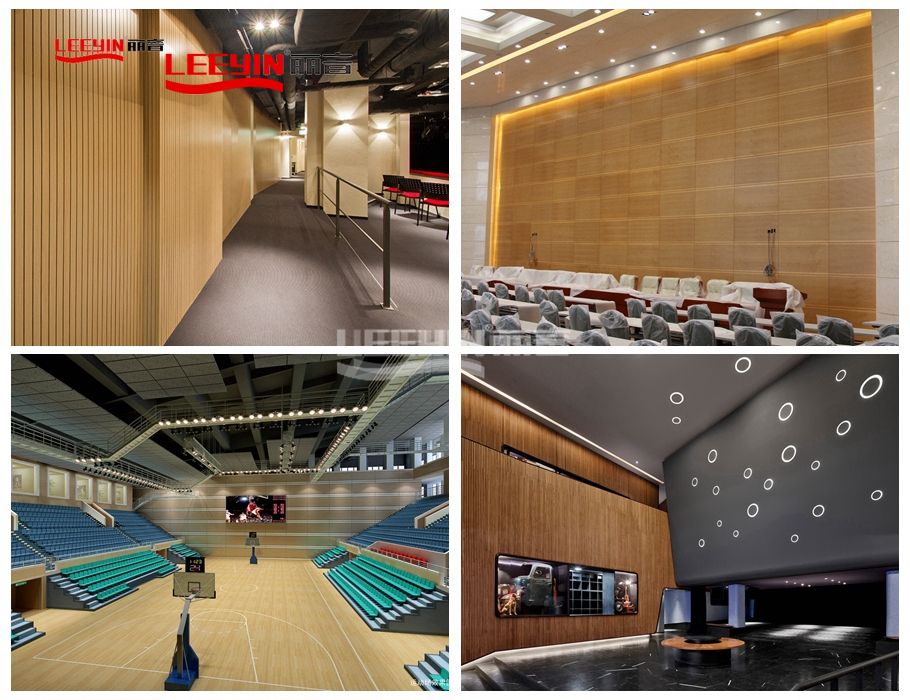

Scope of application

Black MDF grooved acoustic panels for walls and ceilings, with an excellent acoustic absorption for public and private spaces, auditoriums, theaters, hotels, offices.


13-3 Black MDF wooden goove acoustic panel
