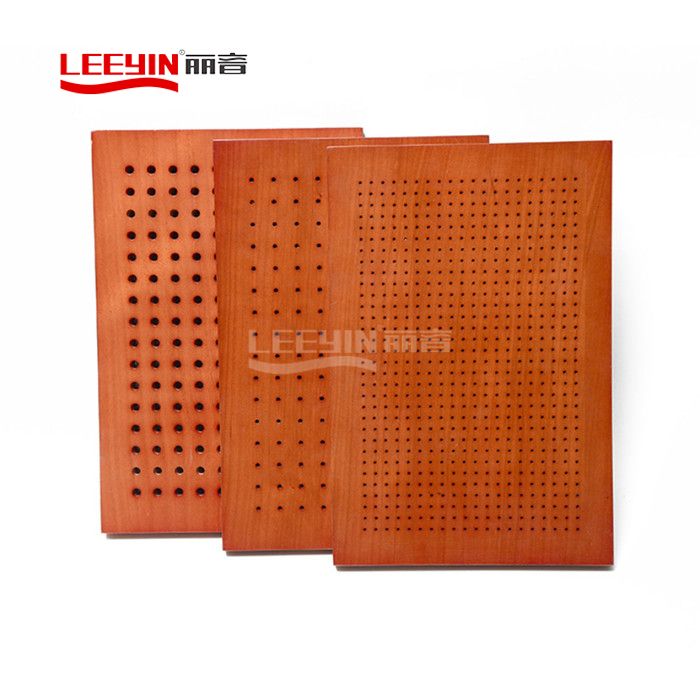

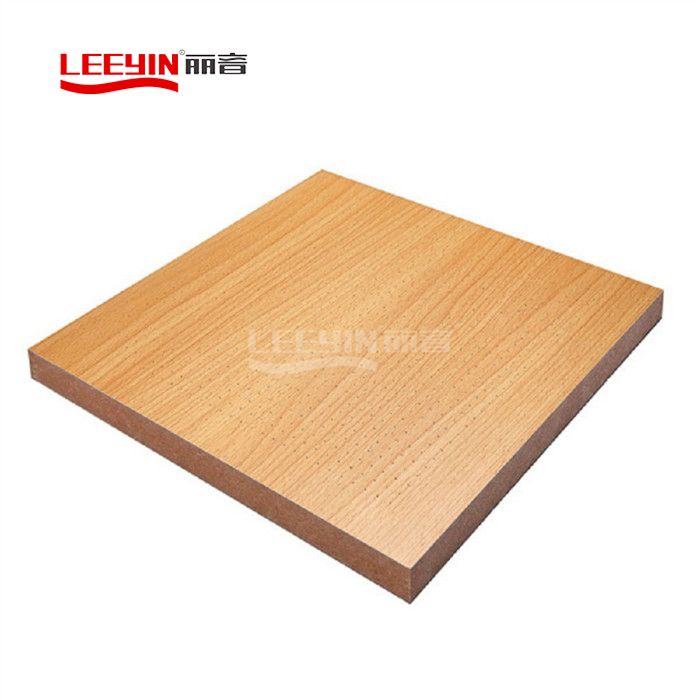

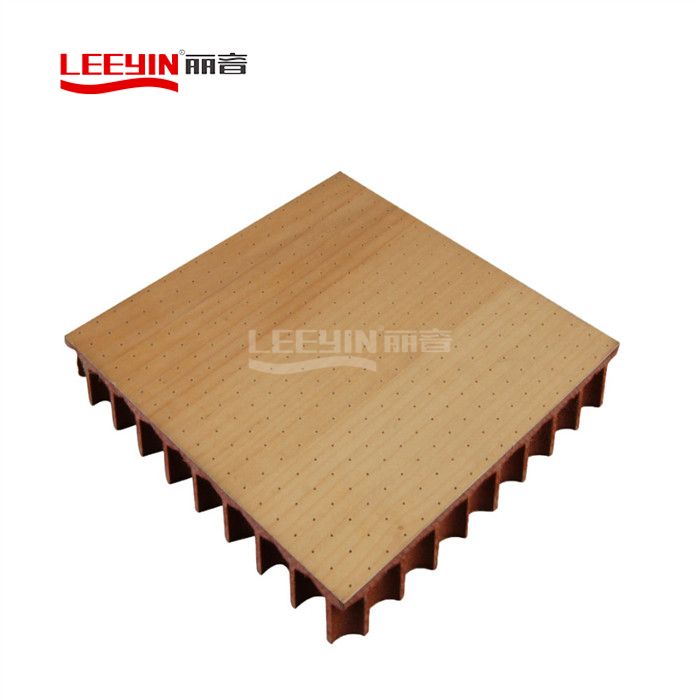

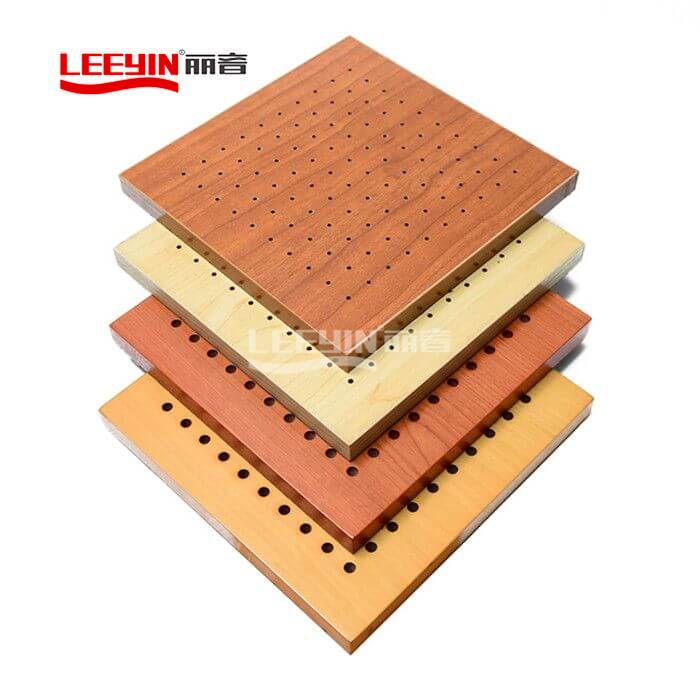

8-8-1 Perforated Wood Acoustic Panel

Standard Thickness:12/15/18mm

Distance of two Holes:8/8,16/16,32/32mm,etc.

Diameter of Holes:1,2,3,4,5,6,8,10,12mm,etc.


Product parameters

Leeyin® perforated wood acoustic panel is an ideal material for sound absorption and decoration. It can help to improve acoustic quality in all types of interior spaces.

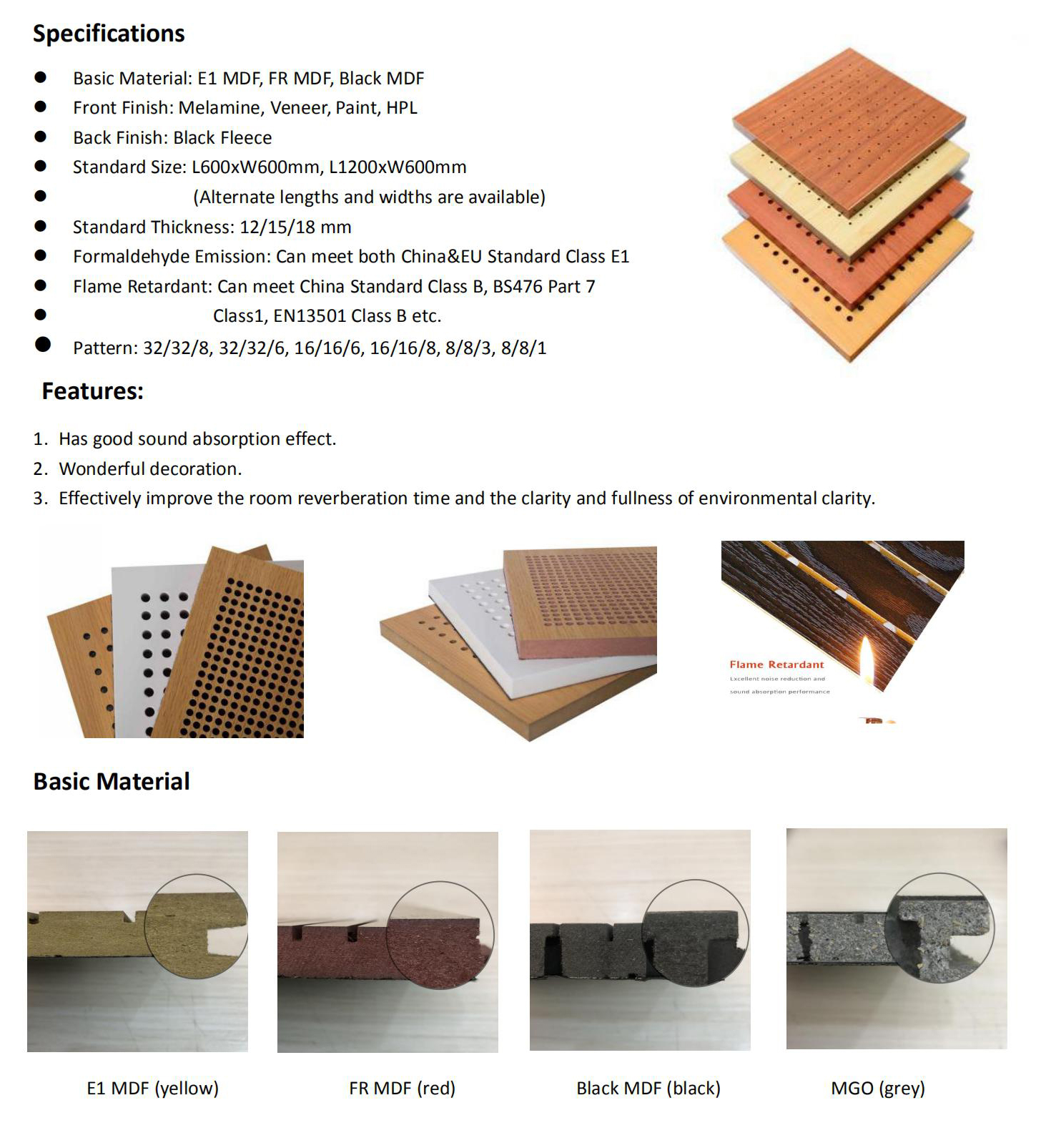

Structure:Basic Material ,Finish&Back Finish

Basic Material:E1 MDF,FR MDF,MGO Combination Board etc.

Front Finish:Melamine,Natural Wood Veneer,Paint,etc.

Back Finish:Black Fleece

Standard  Dimension:600*600,1200*600,1200*1200,2400*1200mm,etc.

Standard Thickness:12/15/18mm

Distance of two Holes:8/8,16/16,32/32mm,etc.

Diameter of Holes:1,2,3,4,5,6,8,10,12mm,etc.

Standard Pattern:8/8/1,16/16/3,16/16/6,32/32/6,32/32/8, etc.

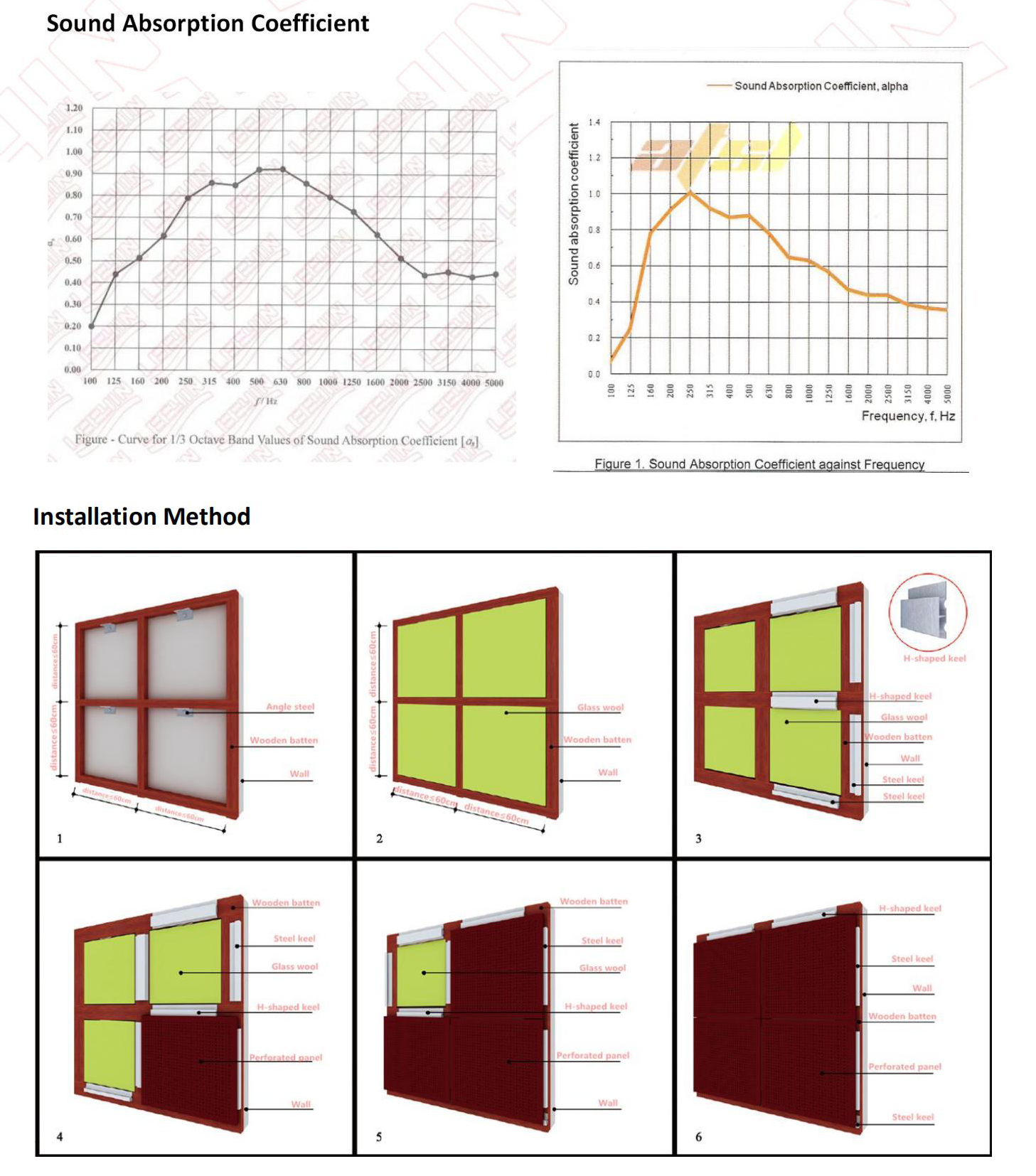

Installation:1.Lightweight steel keel system;2.Wooden steel keel systerm

Fire rate:can meet China Standard Class B1 and BS476 Part 7 Class 1

Eco level:can meet China and EU Standard Class E1

Noise Reduction Coefficient:0.45

Perforation Rate:1.2%

perforated wood acoustic panel

Product Features

8-8-1 Perforated Wood Acoustic Panel

Wooden perforated acoustic panel is a kind of wooden acoustic panel with holes on both front and back sides.The holes can be drilled form the surface directly to the back or the holes in the surface are small while big on the back.The diameter of the holes on two sides are different.It is widely used for interior wall and ceiling decoration.

perforated wood acoustic panel



Scope of application

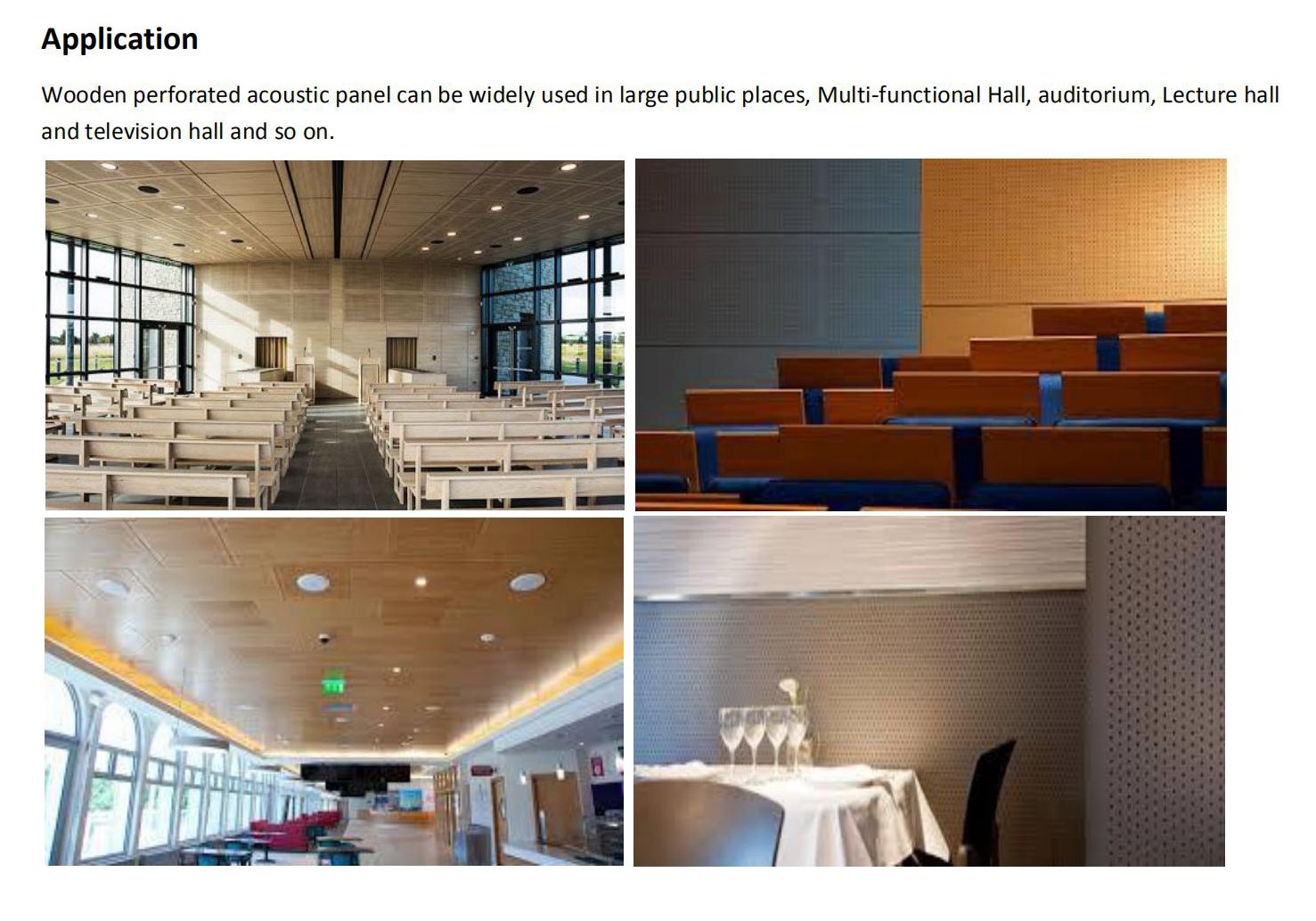

Leeyin wooden perforated acoustical panels can be applied to theater, studio, recording room, conference center, reception hall, office, hospital, restaurant, music rooms, auditoriums, recording studios, broadcasting studios and shopping center. Any space where good speech privacy or speech intelligibility is needed can be used.

8-8-1 Perforated Wood Acoustic Panel

8-8-1 Perforated Wood Acoustic Panel
