Acoustic Sliding Folding Partition Door

Finish:Melamine, Veneer, Fabric, Painting, etc

Thickness:65/80/100m

Width:750-1200mm

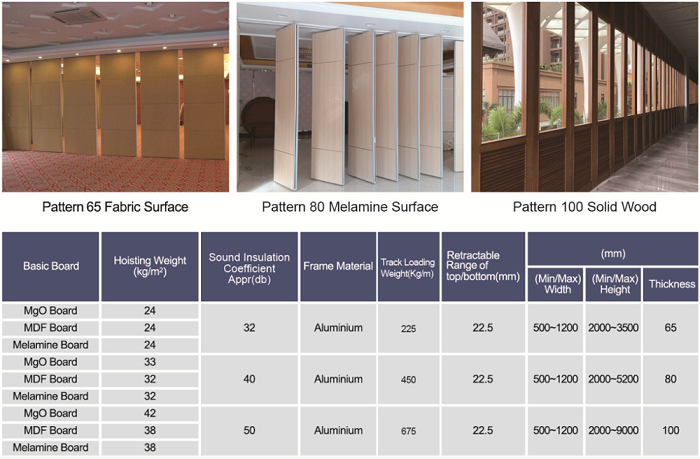

Product parameters

Core Material:MDF+Sound Absorption Wool

Finish:Melamine, Veneer, Fabric, Painting, etc

Thickness:65/80/100m

Width:750-1200mm

Each panel load-bearing weight:225kgs/450kgs/675kgs

Suitabble height space:From 2m-17m

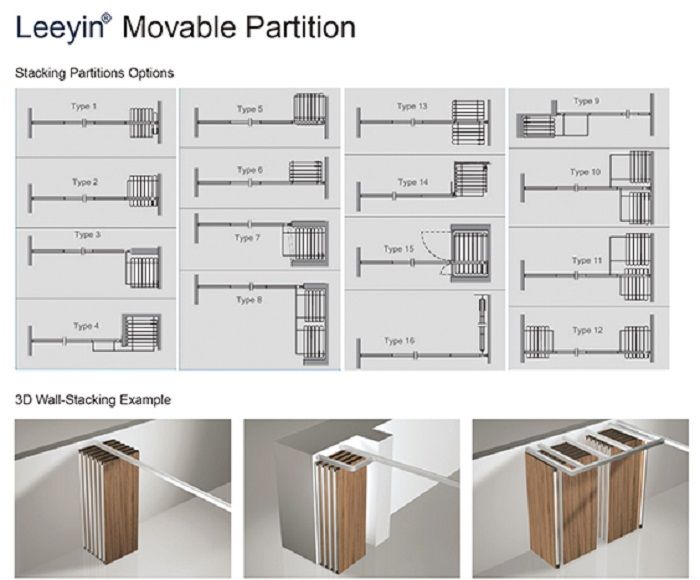

Junction:"T"junction, "L" juntion, cross/ "X" juntion

Acoustic Sliding Folding Partition Door



Product Features

Movable partitions are a series of individually operated panels along a track system designed for maximum space planning flexibility. They can be arranged quickly, easily and efficiently. The movable wall system is tongue-and-groove unitized panel system. Panels are precision laminated, pre-finished with vinyl, fabric or other specified finish. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.


1.Characters and functions:

(1) hang track on the ceiling, not the floor;

(2) heat insulation and fireproof

(3) stable and safe

(4) energy-efficiency

(5) elegant appearance

(6) collection convenient

(7) widely used in different places


2. Usage:

Type 65 is suitable to use at 2m-3.5m height space.

Type 80 is suitable to use at 2m-6m height space.

Type 100 is suitable to use at 3m-9m height space.


3. Each panel load-bearing weight: 225kgs/ 450kgs/ 650kgs


4. Sound insulation coefficient:

Type 65 highest sound insulation coefficient can be reach is 36db.

Type 80 the highest sound insulation coefficient can be reach is 50db.

Type 100 the highest sound insulation coefficient can be reach is 53db.


Scope of application

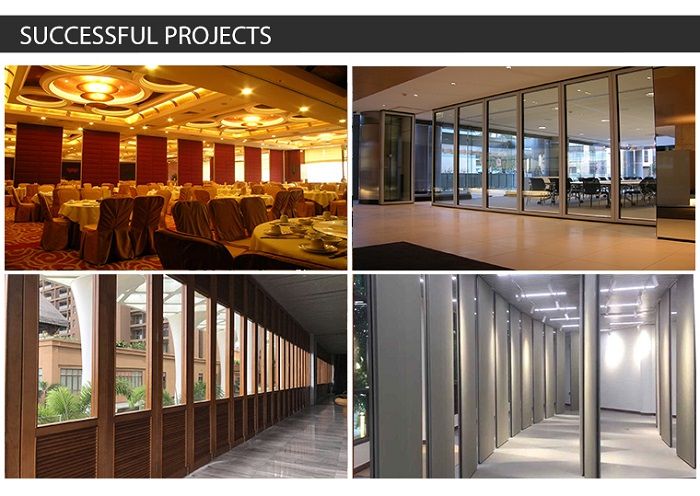

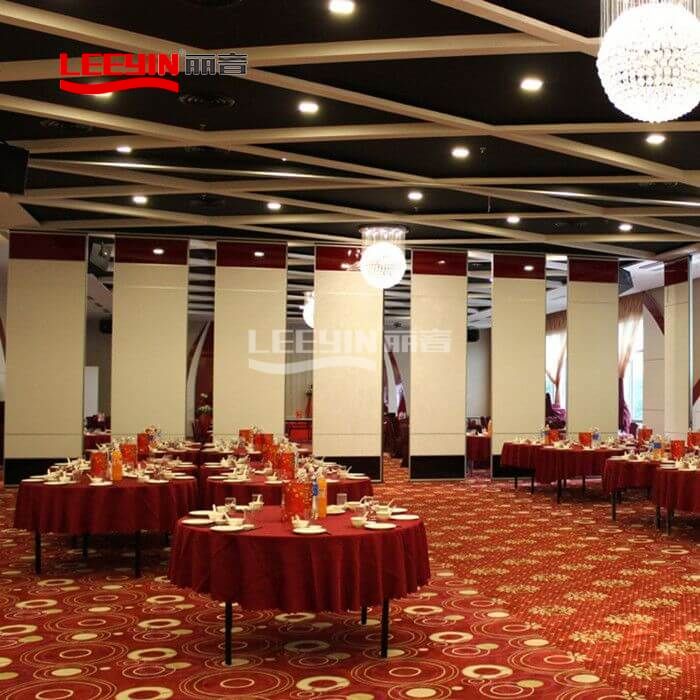

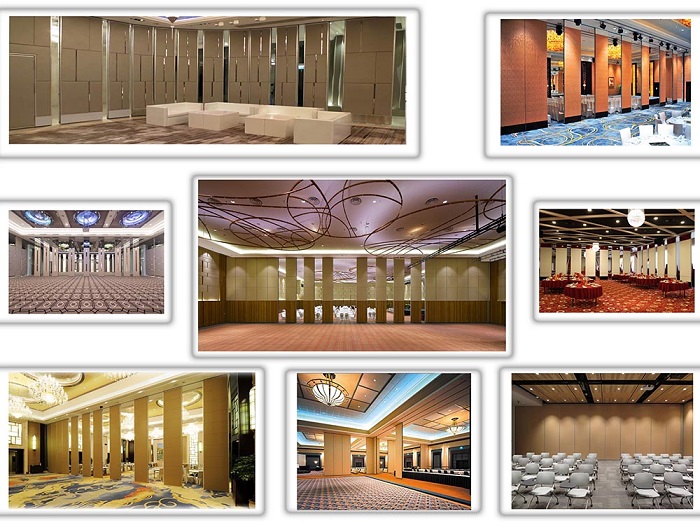

Widely used in hotels, restaurants, private rooms, training rooms, teaching rooms, conference rooms, office buildings and other places.
