Wooden Perforated Wall Panel for Gymnasium

Surface: melamine lamination, real wood veneer, fireproof, metal finish etc.

Substrate: E1 MDF, FR MDF, MGO combination board etc.


Product parameters

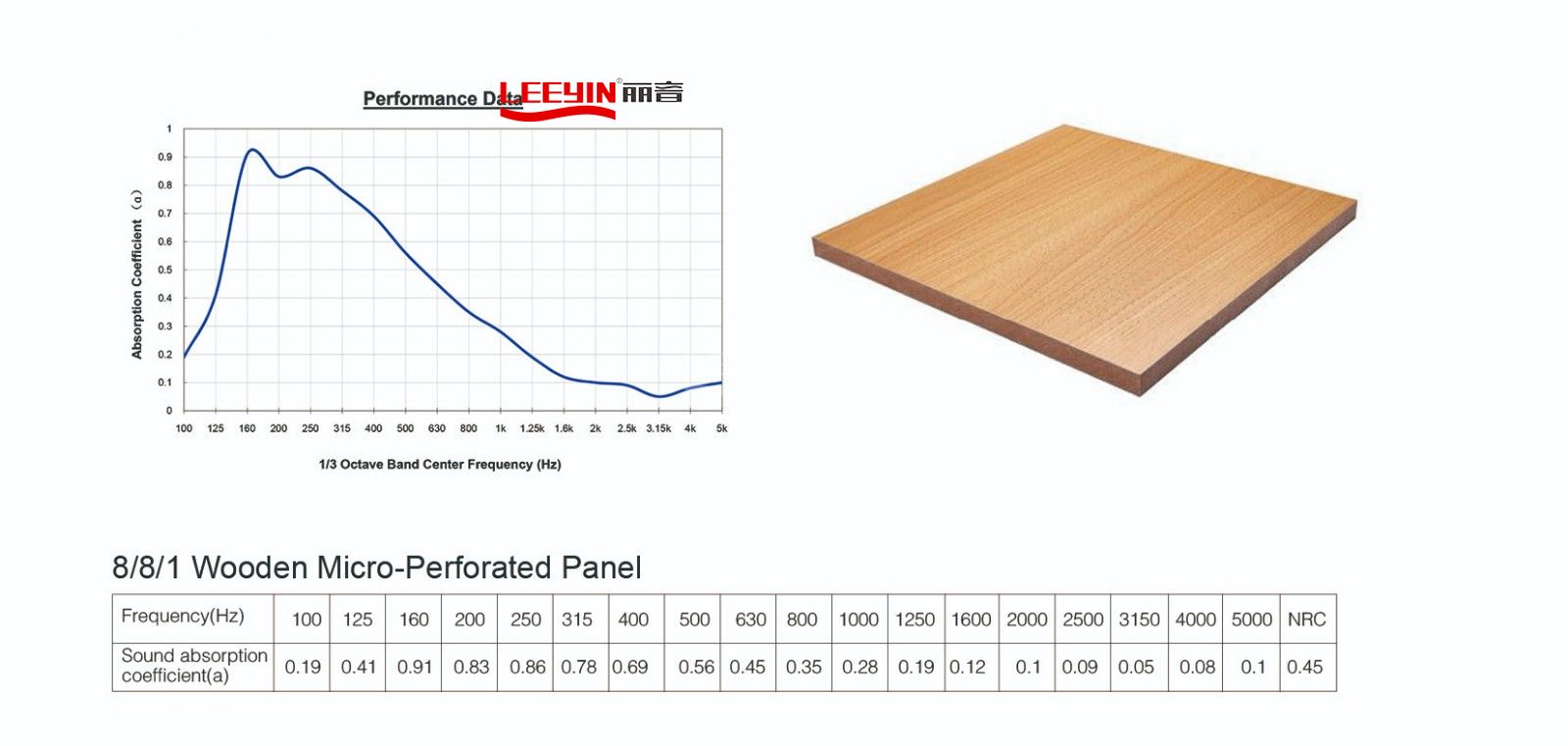

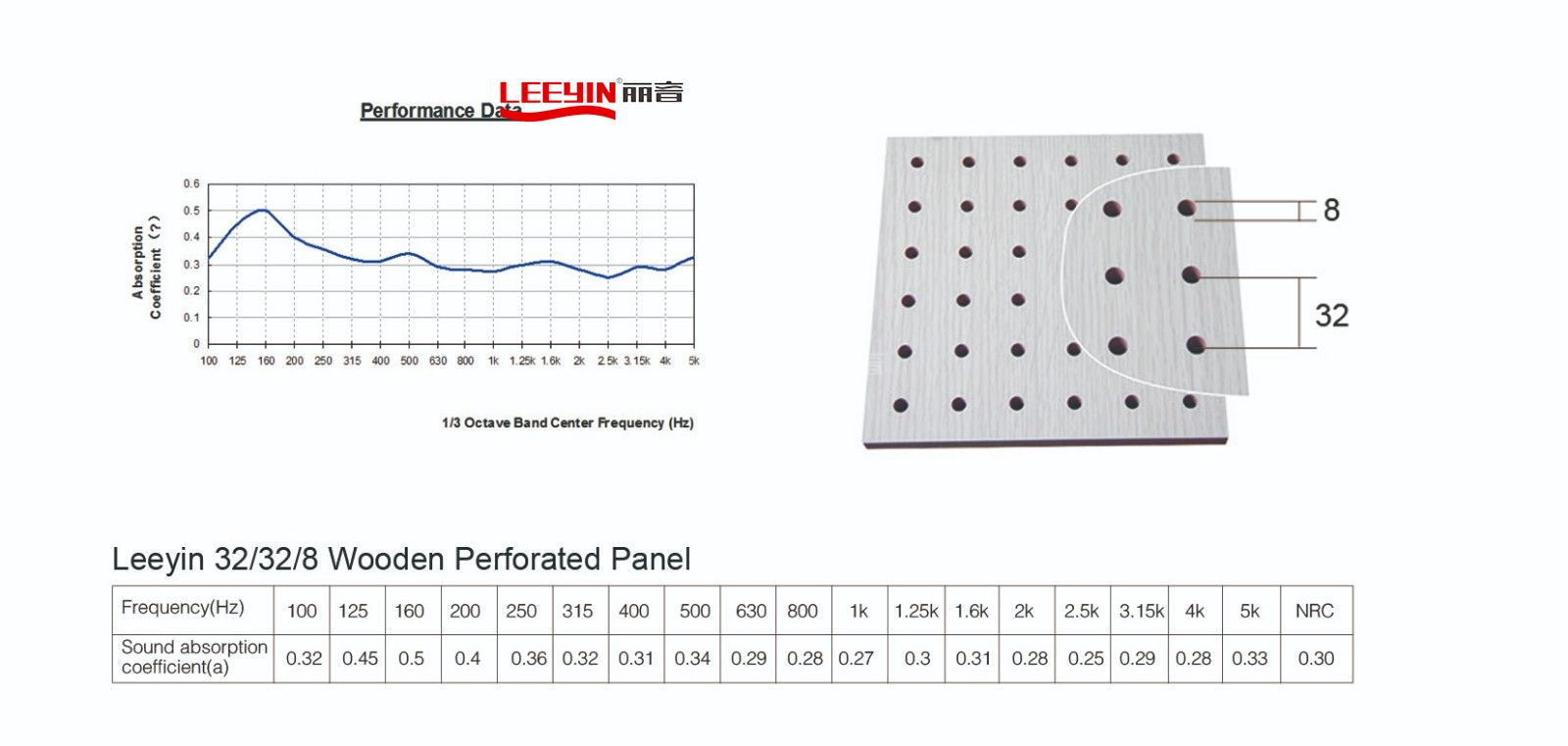

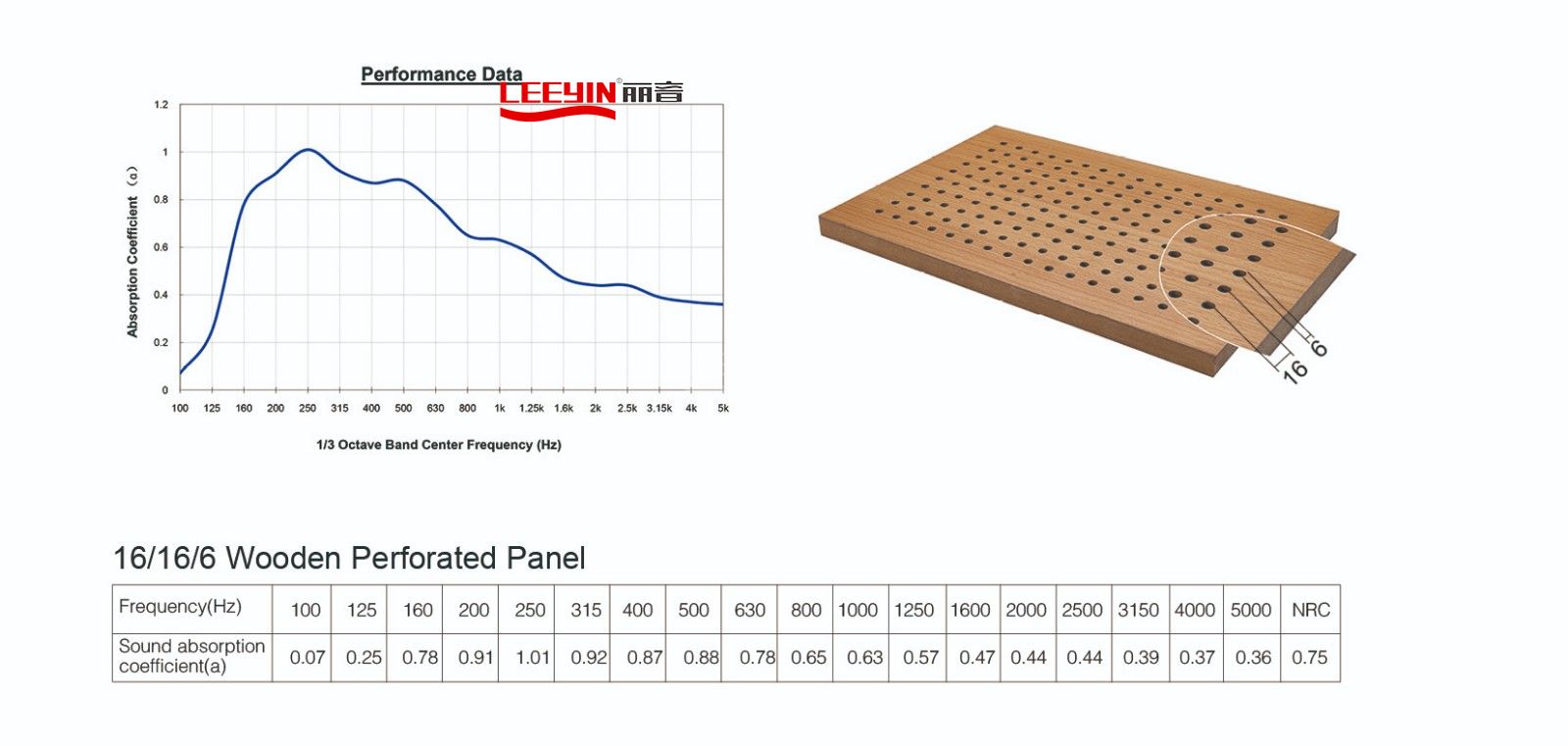

Model No.: 8-8-1, 8-8-2, 16-16-5, 16-16-6, 32-32-6, 32-32-8 etc.

Surface: melamine lamination, real wood veneer, fireproof, metal finish etc.

Substrate: E1 MDF, FR MDF, MGO combination board etc.

Acoustic felt: fiberglass, Ahstrom, Soundtex

Flammability: class B1; class B

Class E0, E1, good to healty and environment.

Usage: wall or ceiling

Wooden Perforated Wall Panel for Gymnasium

Wooden Perforated Wall Panel for Gymnasium

Wooden Perforated Wall Panel for Gymnasium



Product Features

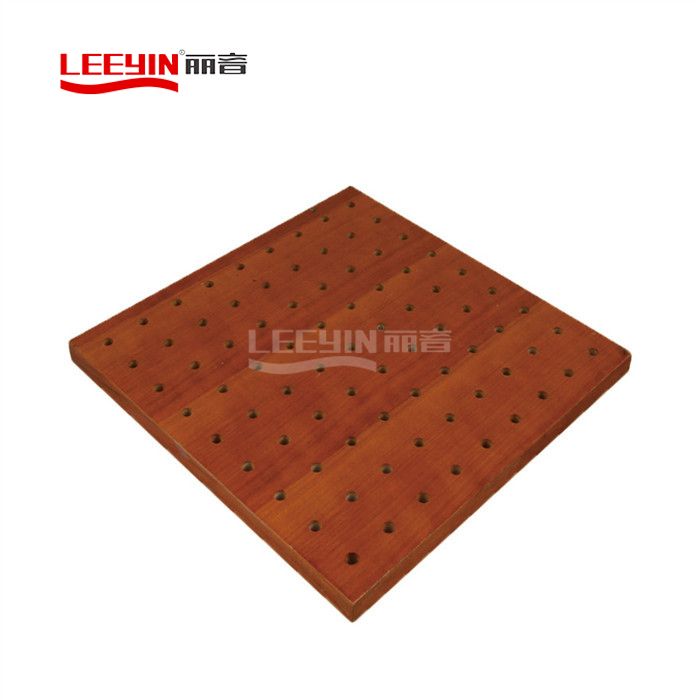

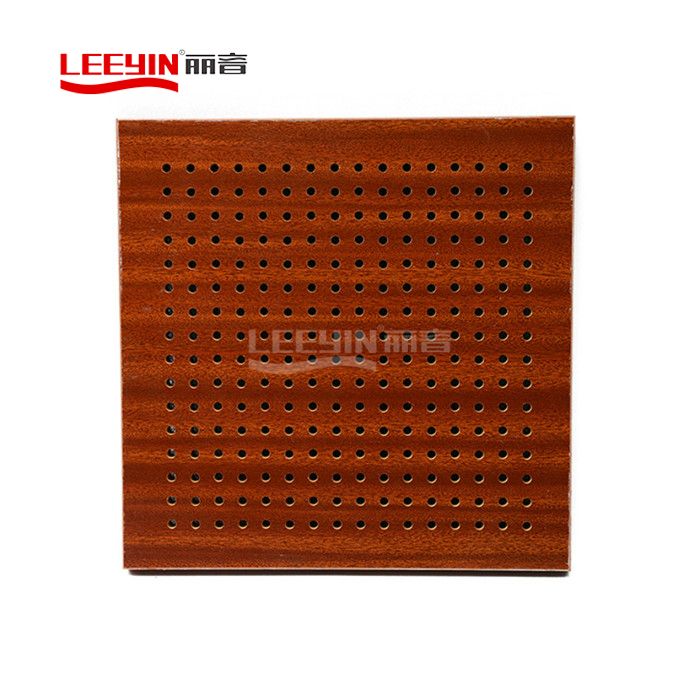

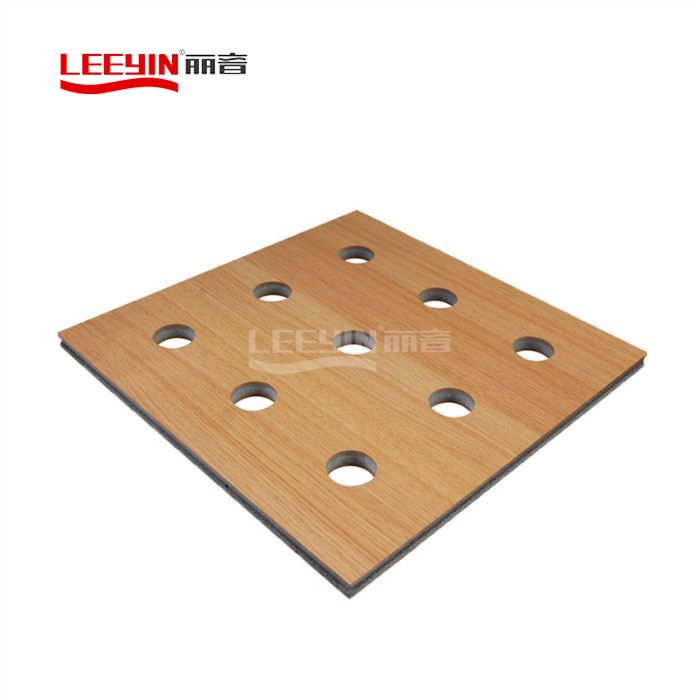

Perforated panel is a kind of wooden acoustic panel with a series of round holes on both front and back sides. The holes can be drilled from the surface directly to the back or the holes in the surface are small while on the back are big. The diameters of the holes on two sides are different. It is widely used for walls and ceilings.


Features:

1.Excellent acoustic performance

2.Sound absorbing and noise reduction

3.Improving sound articulation


Scope of application

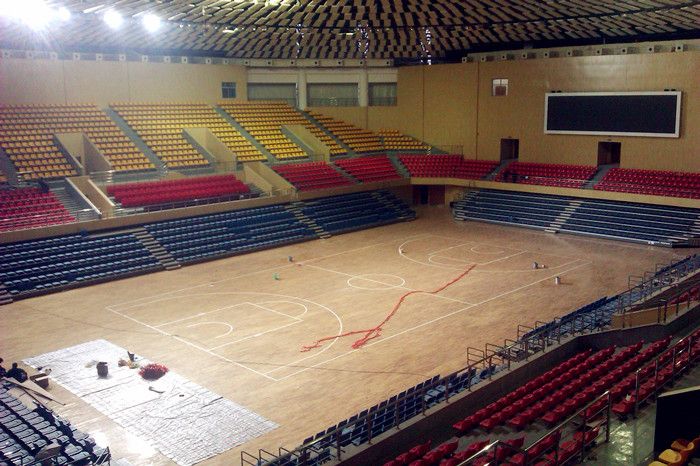

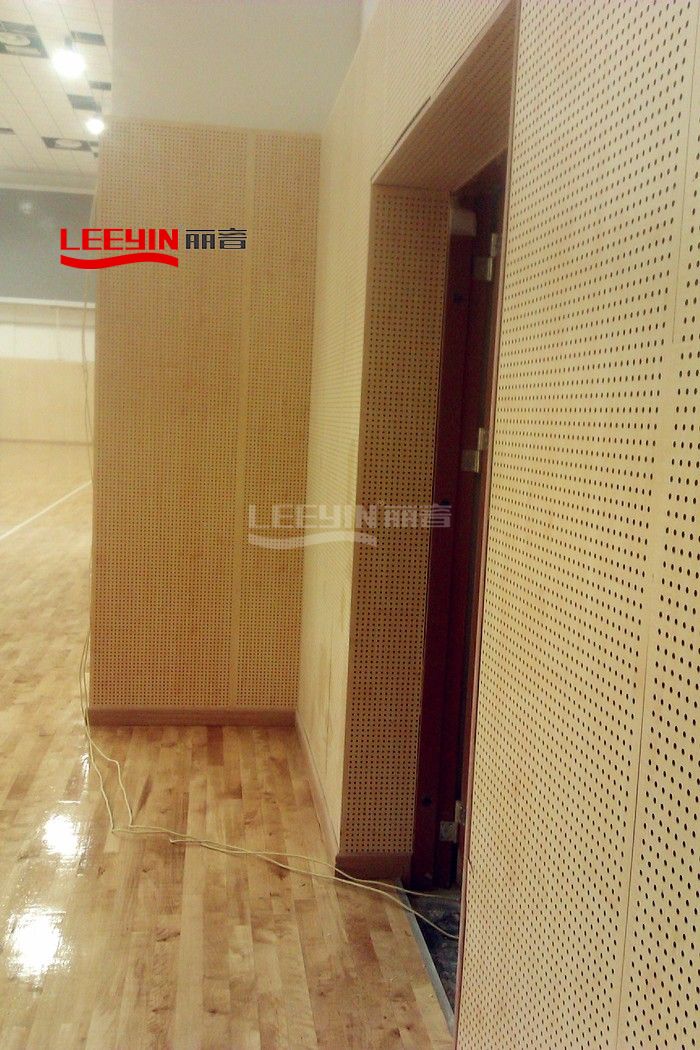

The wooden acoustic panels are suitable to use in any project that needs acoustical solutions, such as concert hall, theater, school, airport etcs.


Wooden Perforated Wall Panel for Gymnasium

Wooden Perforated Wall Panel for Gymnasium
