Broadcasting Studio Acoustic Project

  • Broadcasting Studio Acoustic Project
  • Broadcasting Studio Acoustic Project
  • Broadcasting Studio Acoustic Project
  • Broadcasting Studio Acoustic Project
  • Broadcasting Studio Acoustic Project
  • Broadcasting Studio Acoustic Project
  • Broadcasting Studio Acoustic Project
  • Broadcasting Studio Acoustic Project
  • Broadcasting Studio Acoustic Project
  • Broadcasting Studio Acoustic Project
  • Broadcasting Studio Acoustic Project
  • Broadcasting Studio Acoustic Project

Radio and TV stations require premium sound quality for broadcasting. Controlling the echoes within the broadcast room happens when sound panels are introduced into space. Once the echoes are captured from the studio with the sound panels, greater clarity to original sound is restored, and a crisp broadcast signal is produced. The key to studio soundproofing and maximizing the quality of your broadcast signal is to reduce and eliminate the echo.

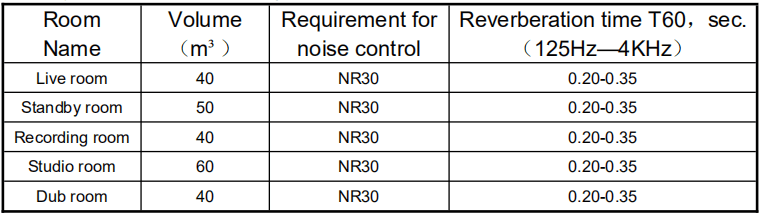

According to “GY/ j5086-2012 "standard for acoustic design of radio and television recording ", Normally noise acceptance standard for small broadcasting room is NR20. Considering the characteristic of live shows and the its actual situation, the noise of air conditioning system in the existing office building is not easy to control, and the sound insulation performance of glass window wall is very limited . In order to make sure the effect of live show, we have to make acoustics and sound proof for this type studio .Acoustic design include noise control and Timbre, the index as below: Room Name Volume (m³) Requirement for noise control Reverberation time T60,sec. (125Hz—4KHz) Live room 40 NR30 0.20-0.35 Standby room 50 NR30 0.20-0.35 Recording room 40 NR30 0.20-0.35 Studio room 60 NR30 0.20-0.35 Dub room 40 NR30 0.20-0.35.

Broadcasting Studio Acoustic Project

Leeyin Acoustics participated in the acoustic design of the News Acquisition and Editing Center. According to the media application requirements of the main station, the three units on the F1-F4 floors need to be connected and integrated into a whole under the premise of ensuring the safety of the building, the original partition was broken. On the premise of meeting the fire protection regulations, keep reasonable fire exits and elevators, remove some of the elevators in F1-F2 and the stairs in the area, and adjust the elevators in F3-F4 to the elevators in the entire area of F1-F4. The pipelines involved in the demolition (such as sewage, reclaimed water, refrigerant, etc.) and fire fighting facilities shall be adjusted in position.


Broadcasting Studio Acoustic Project

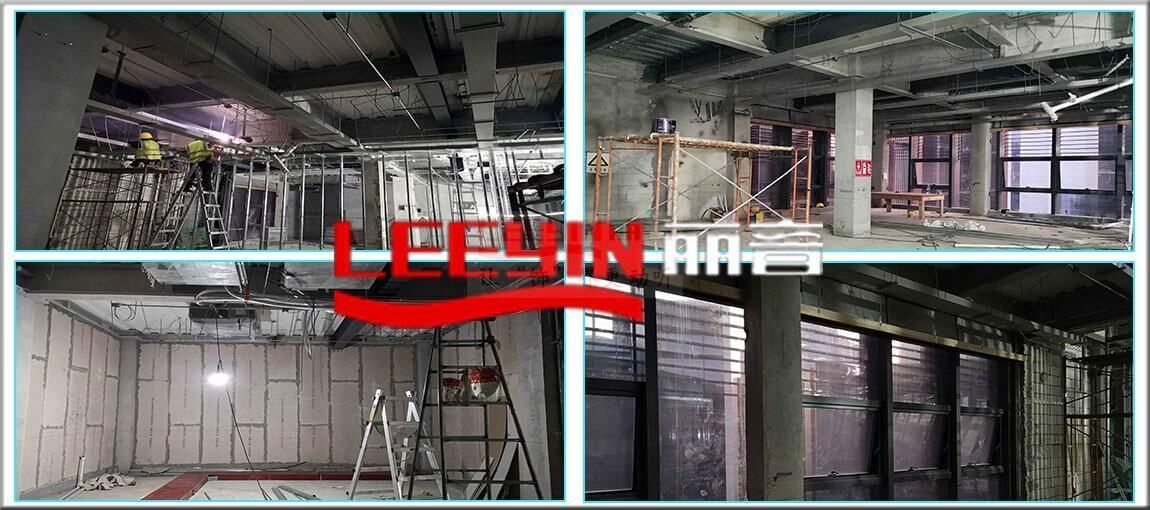

                                                                                                              (Under construction)

General requirements for decoration:

As the news media, the news collection and editing center should be modern, simple, dignified and elegant, with a central media style. Each area includes functional areas such as reception area, display area, office area, conference room, studio, open production area and computer room.

Broadcasting Studio Acoustic Project

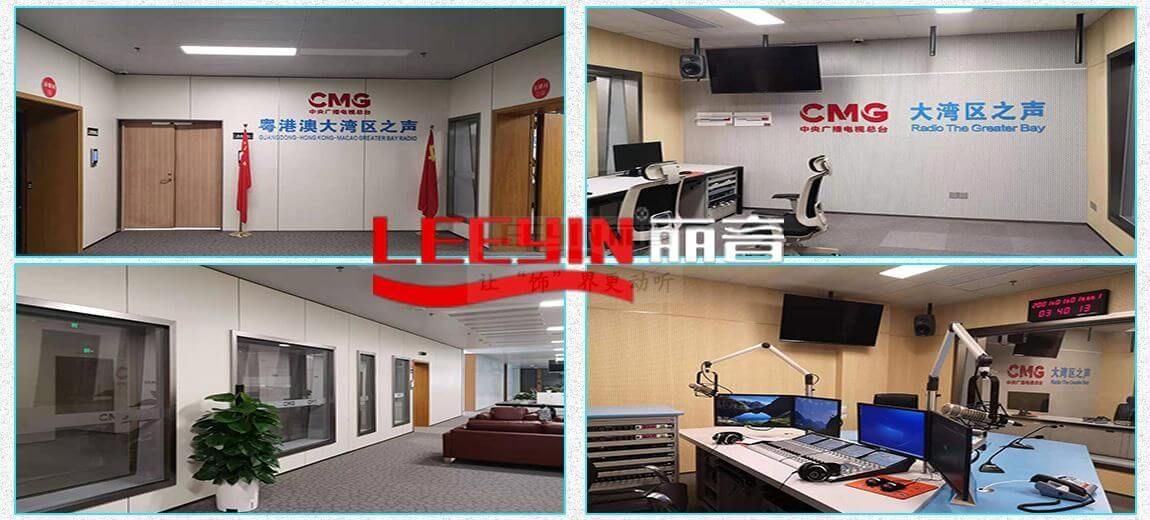

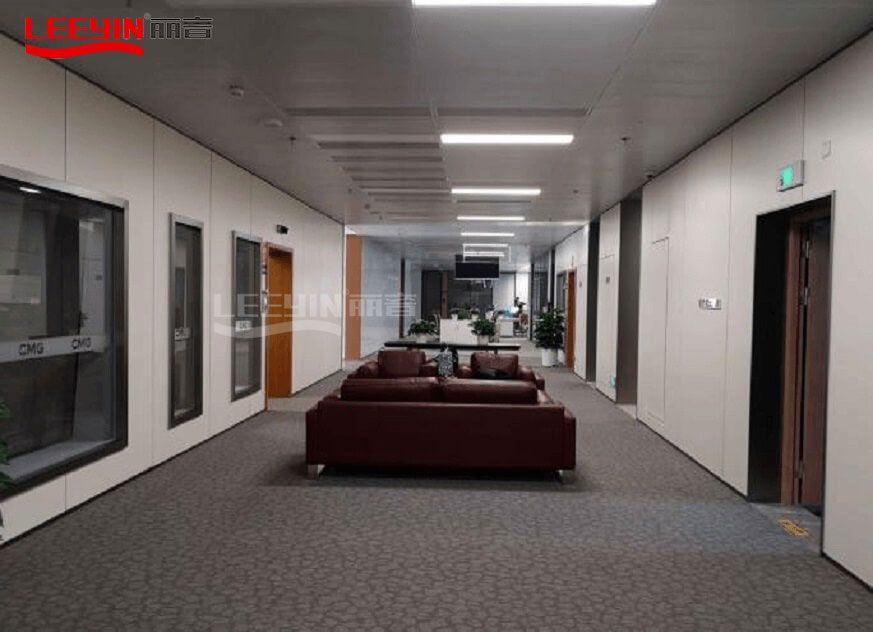

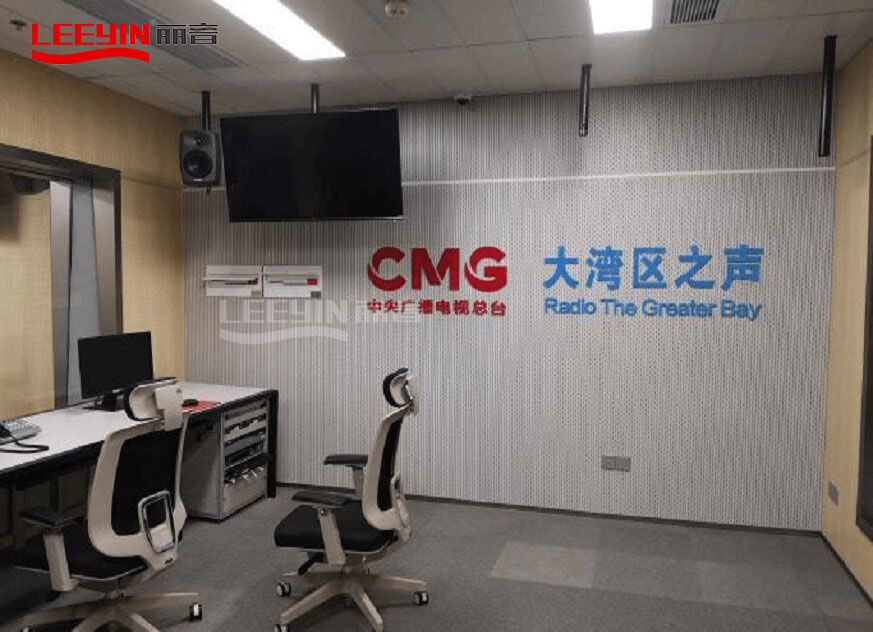

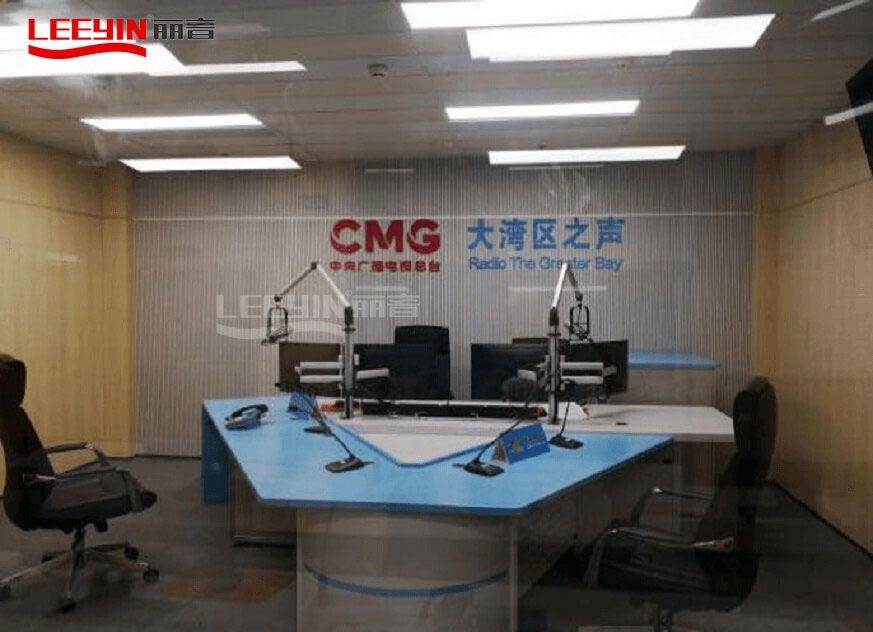

       (Completion of acceptance inspection)

At present, the inspection and acceptance of the project in the news collection and editing center  has been completed and officially put into use on September 1st, 2019. The owner has not found any sound quality problems during almost all periods of use. Leeyin Acoustics, as the project design unit, always pays attention to it and uses actions to Support the development of the news collection and editing center.


We are a one-stop acoustics factory with 14 years experiences on research and development, manufacturing, professional acoustics analyse with calculation, 3D visual design and oversea construction.


Choosing Leeyin Acoustics will give you the most practical and effective  Broadcasting Studio acoustic solution.
