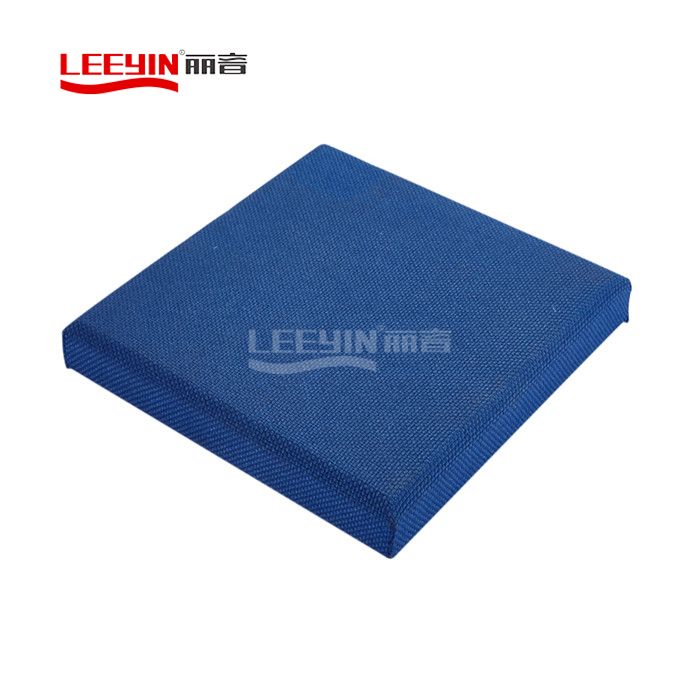

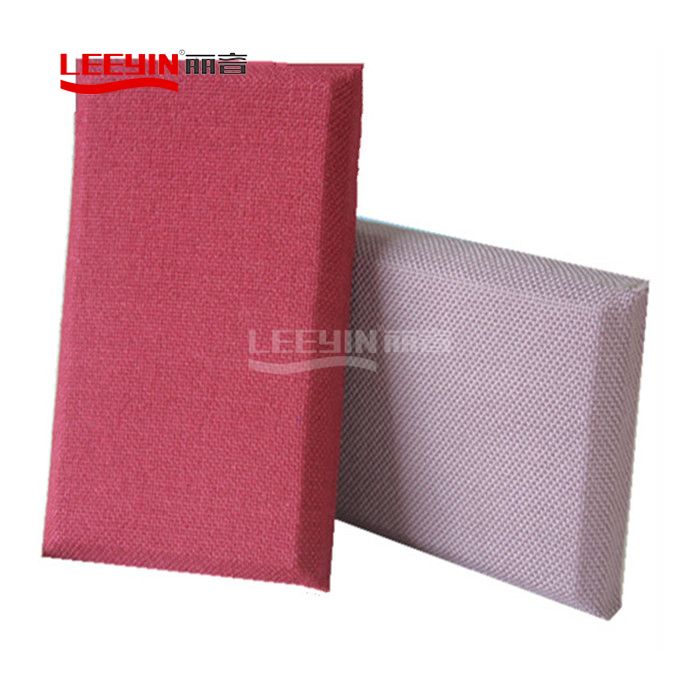

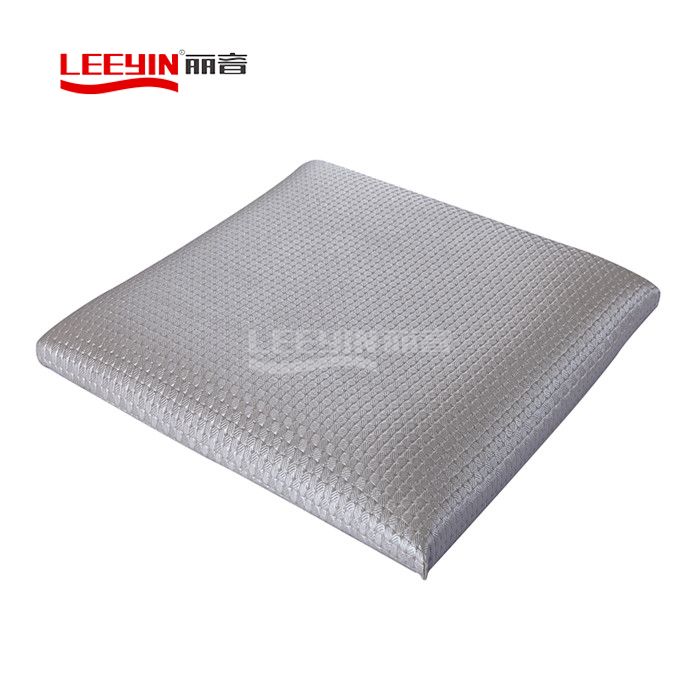

Cloth Glasswool Covered Acoustic Wall Panel

Size: L600*W600, L1200*W600mm

Thickness: 25mm, 50mm

Type: Bevel Angle, Square Angle


Product parameters

1.Structure: Base Material, Fabric & Frame

2.Basic Material: Glass Wool, Polyester Wool or Melamine Foam

3.Finish: Fabric (Lots of Colors Available)

4.Rear Surface: Cardboard

5.Size: L600*W600, L1200*W600mm

6.Thickness: 25mm, 50mm

7.Type: Bevel Angle, Square Angle

8.Acoustical Theory: Porous Absorption

9.Characteristic: Sound/Noise Reduction

10.Density: 48 Kg/m3 (Glass Wool)

11.Fireproof: GB8624-1997 Class B1

12.Mounting: Easy to Be Installed on Our Wood Batten System or Lightweight Movable Clips System

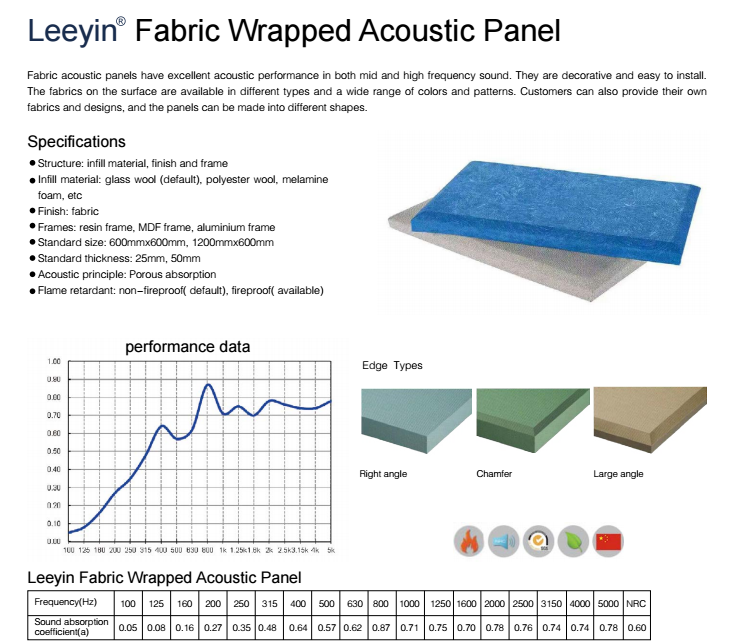

fabric covered acoustic panel parameter.png

Product Features

Fabric acoustic panels have excellent acoustic performance in both mid and high frequency sound. They are decorative and easy to install. The fabrics on the surface are available in different types and a wide range of colors and patterns. Customers can also provide their own fabrics and designs, and the panels can be made in different shapes.

Scope of application

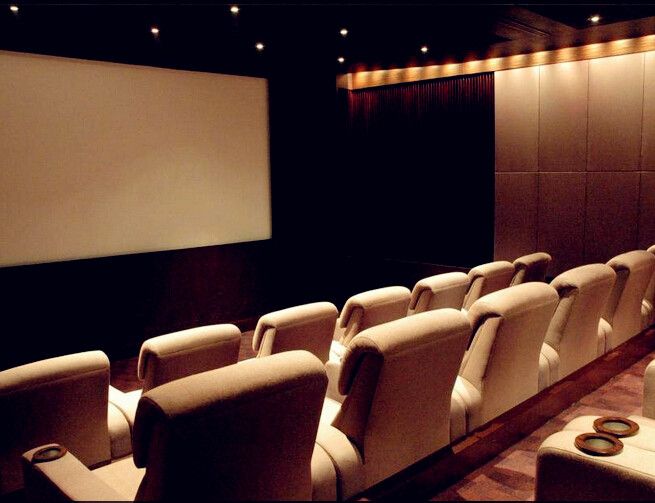

Acoustic cloth wall panels can be used at almost any architectural project that need acoustical treatments, such as band rooms, restaurants, cinemas, telemarketing rooms, plants, classrooms, etc.


Cloth Sound Absorption Panel for Interior Wall and Ceiling

Cloth Sound Absorption Panel for Interior Wall and Ceiling
